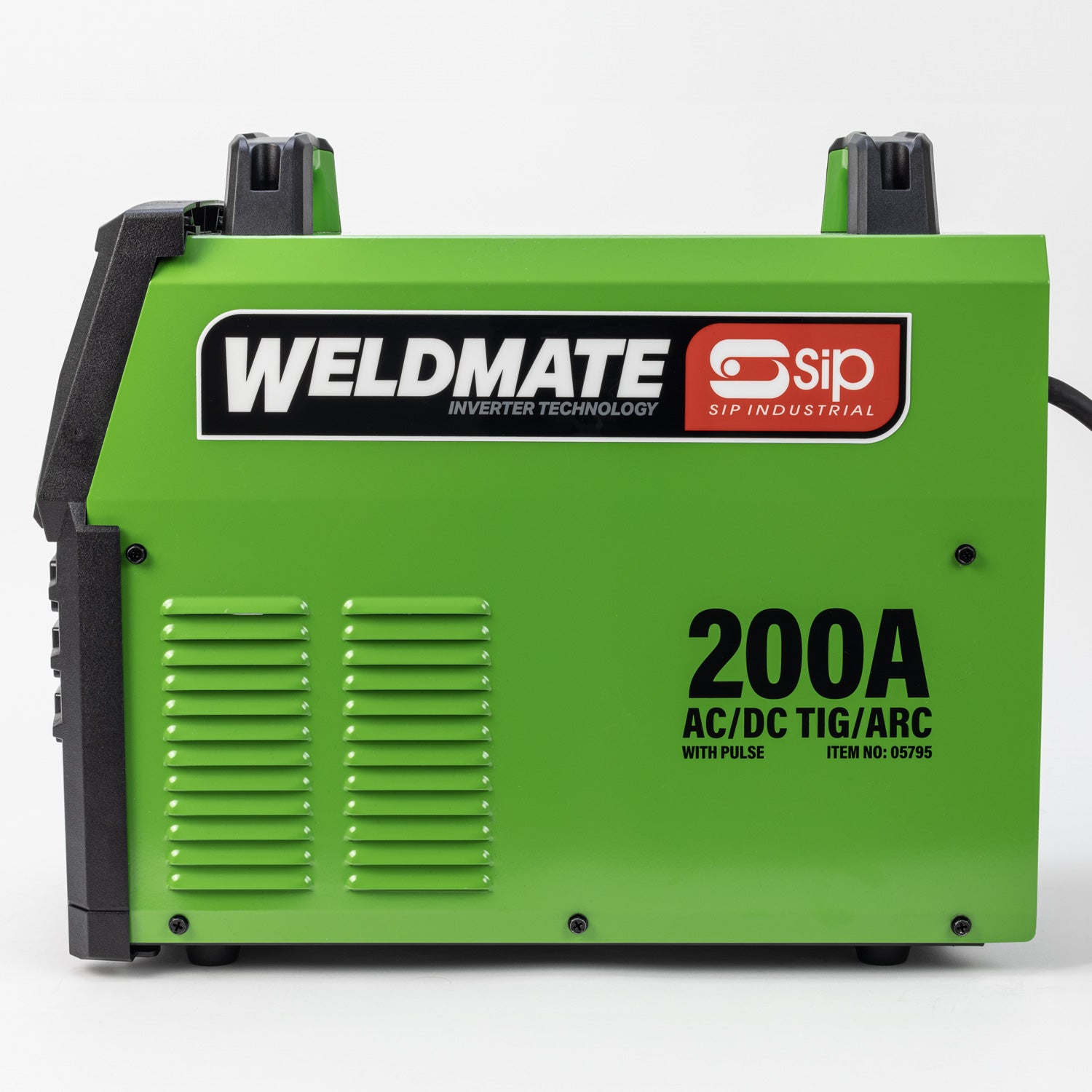

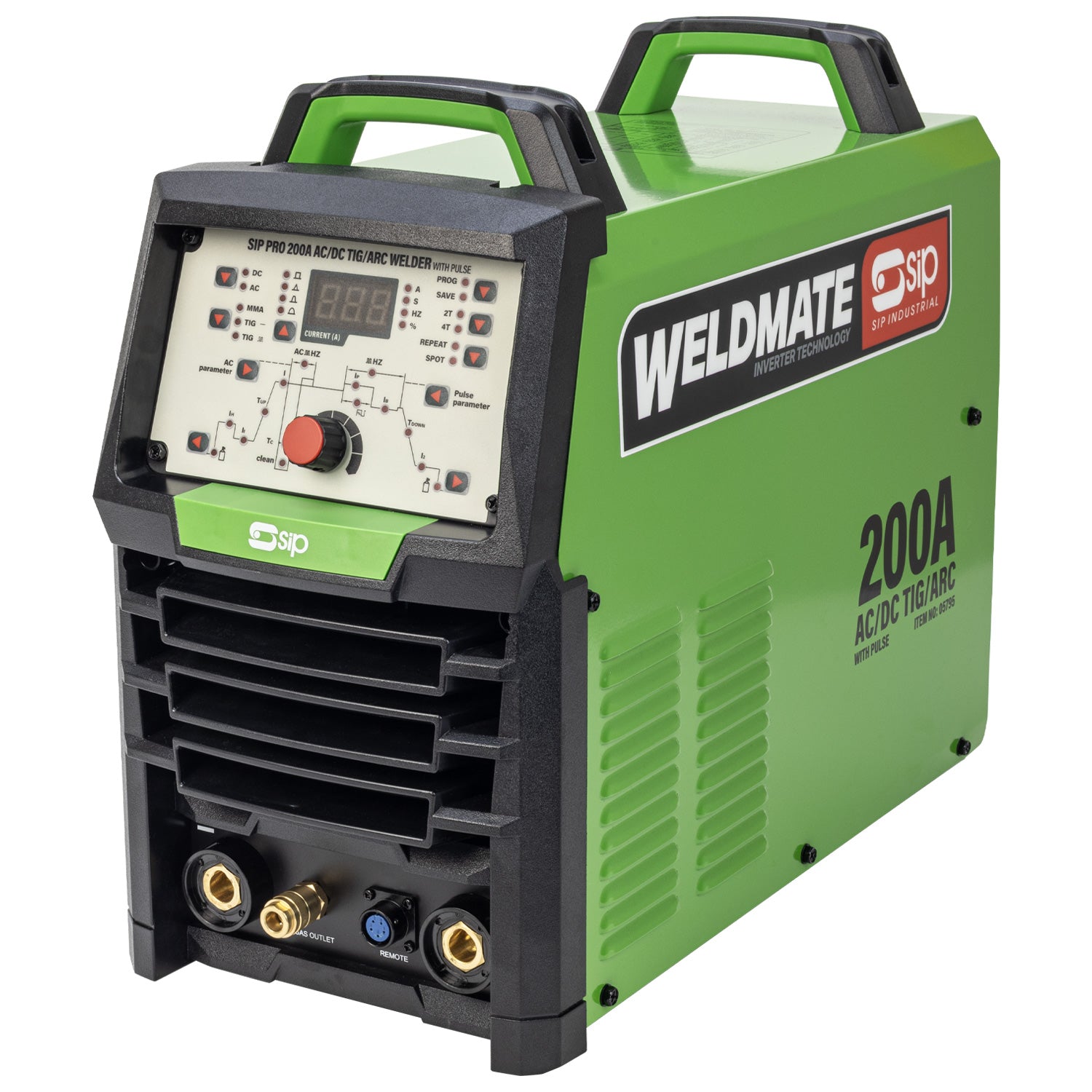

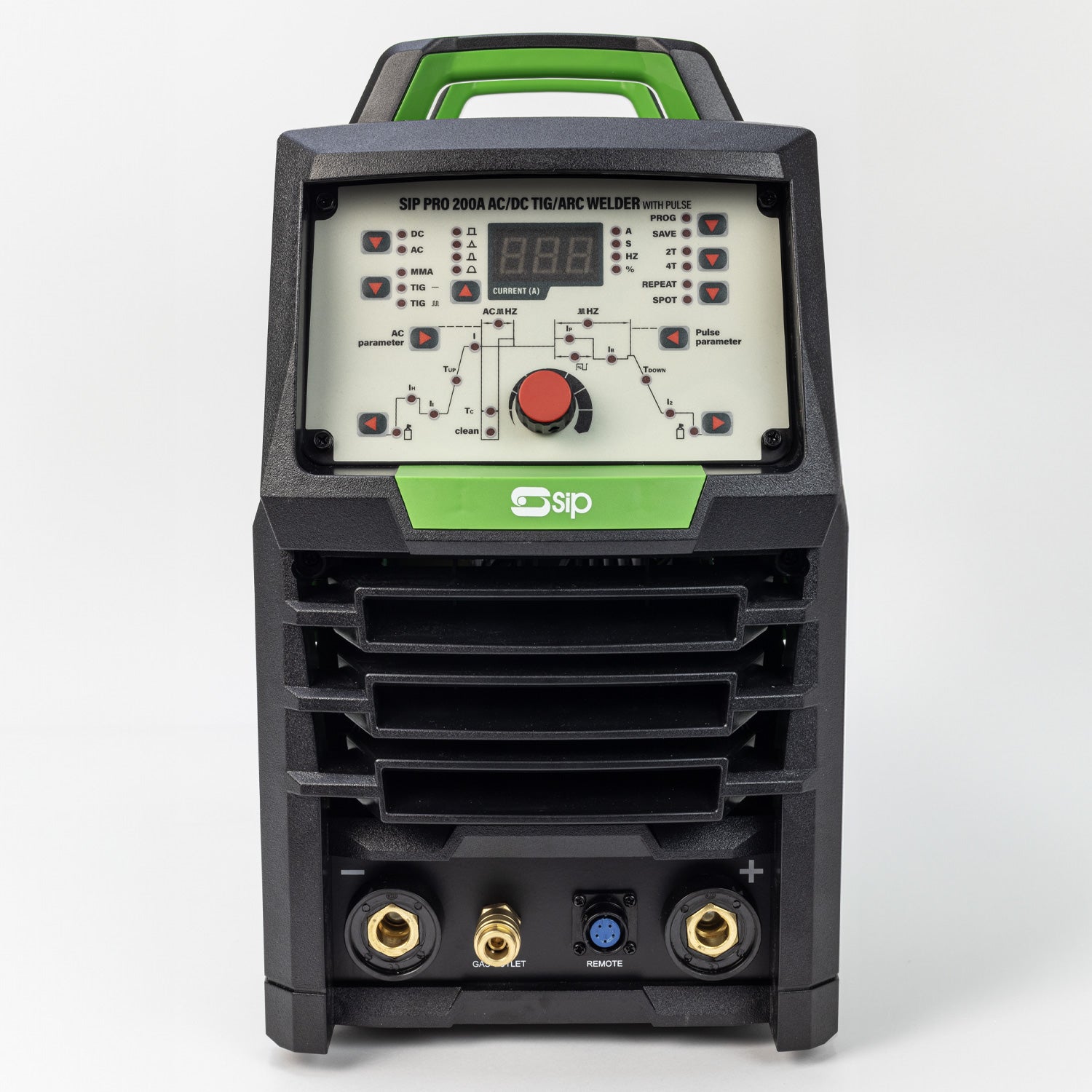

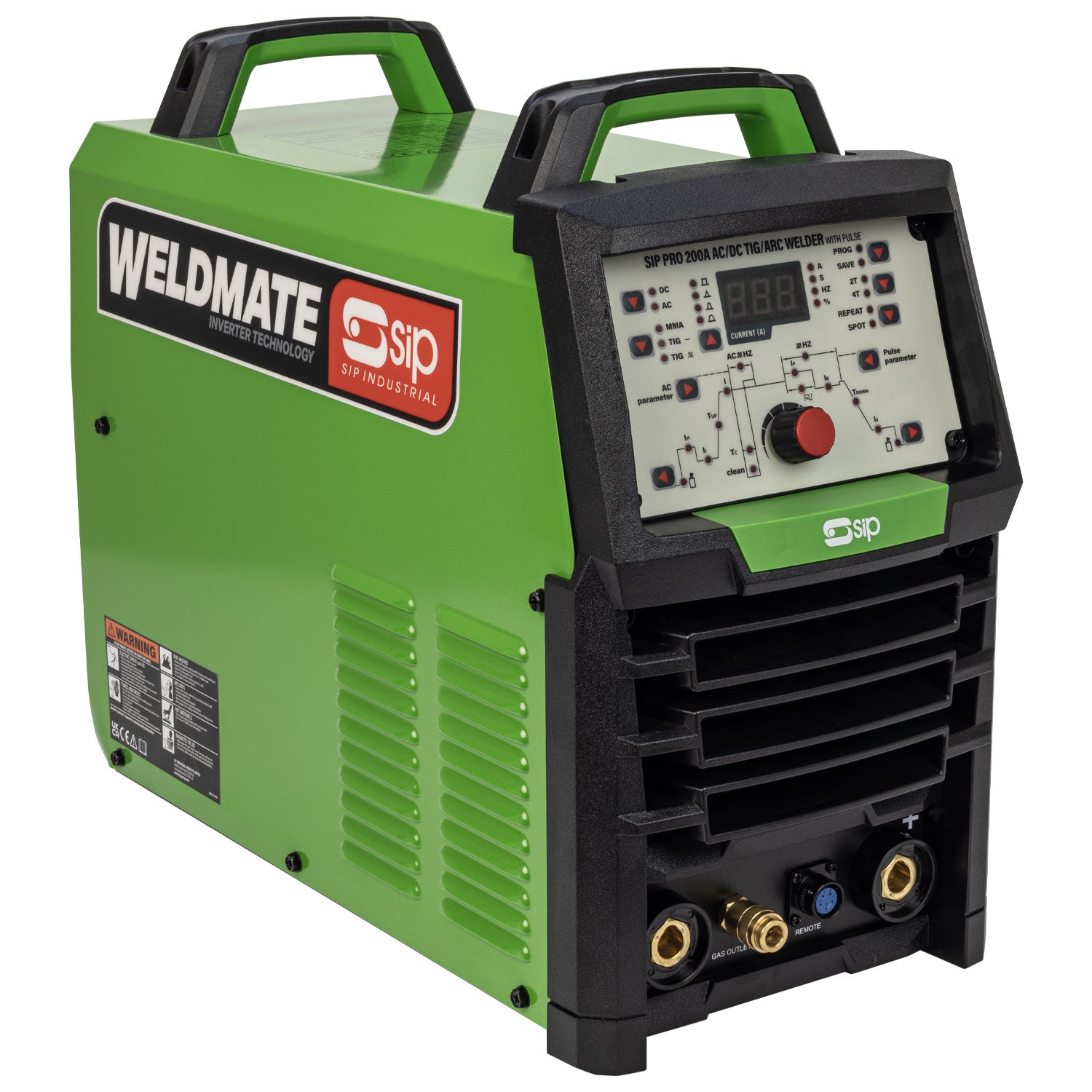

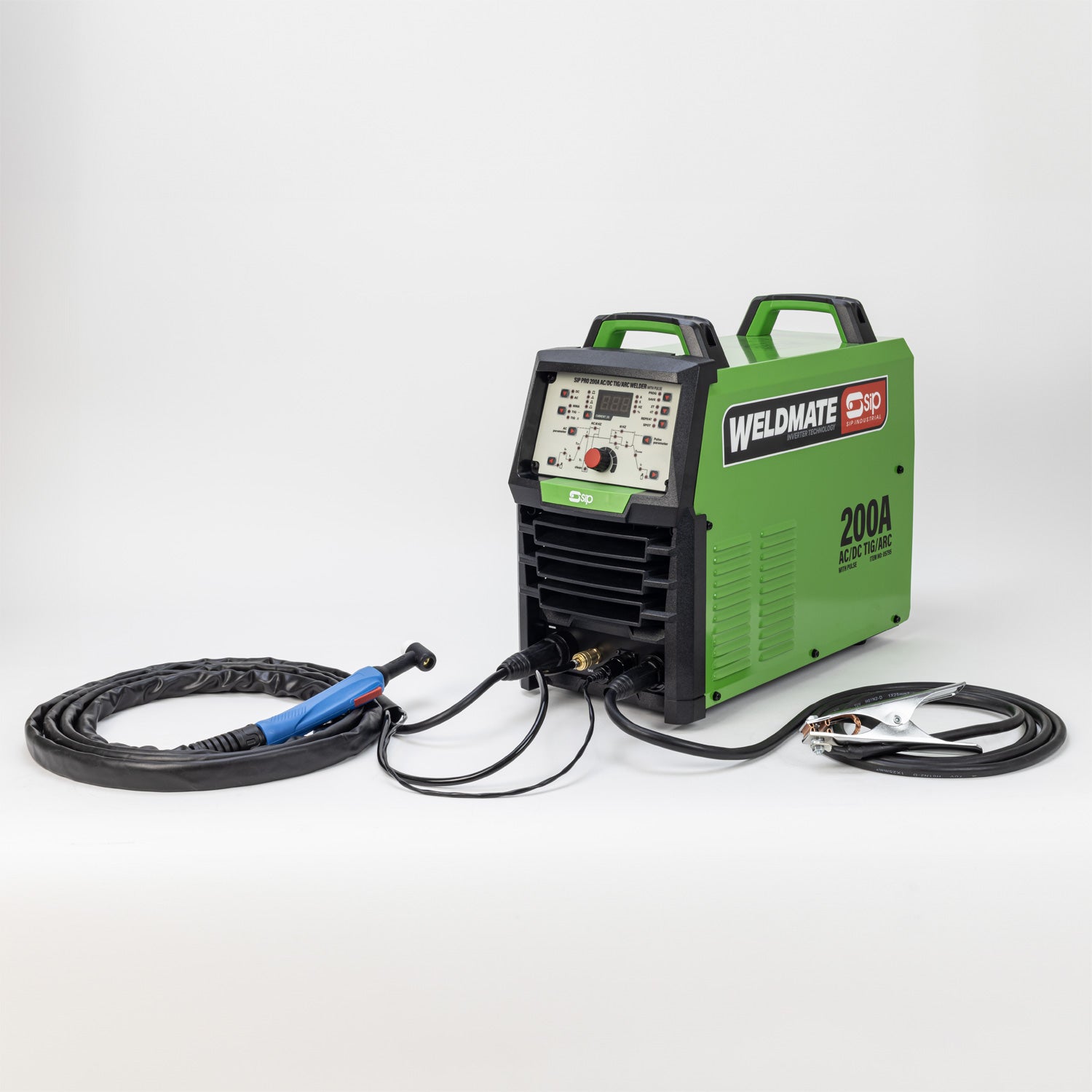

SIP 05795 PRO 200A AC/DC TIG/ARC Welder with Pulse

The SIP WELDMATE® PRO 200A AC/DC TIG/ARC Inverter Welder with Pulse is a dual process welder with AC/DC TIG capability for professional applications. This powerful inverter welder can be used for both TIG and ARC welding processes for outstanding versatility in demanding environments.

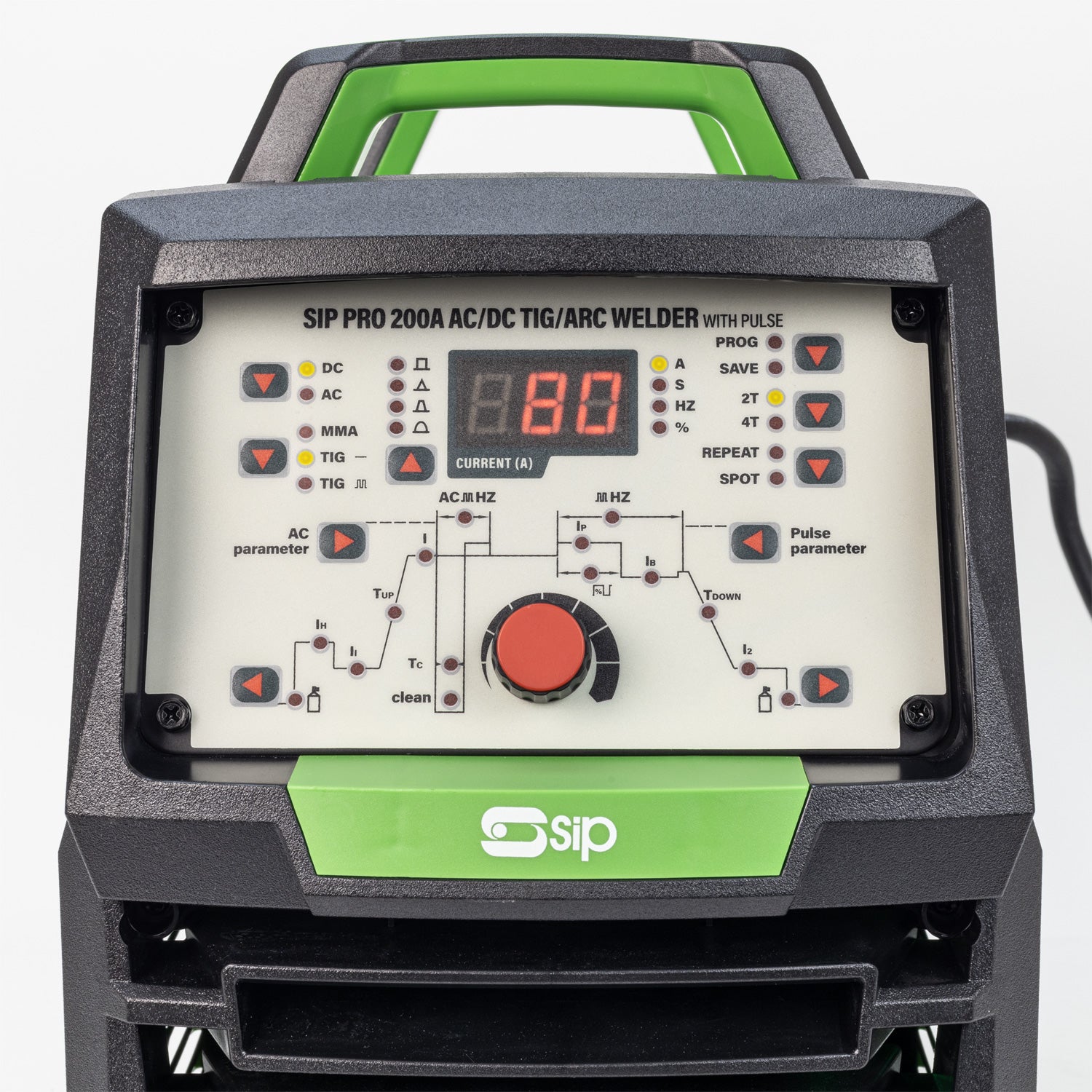

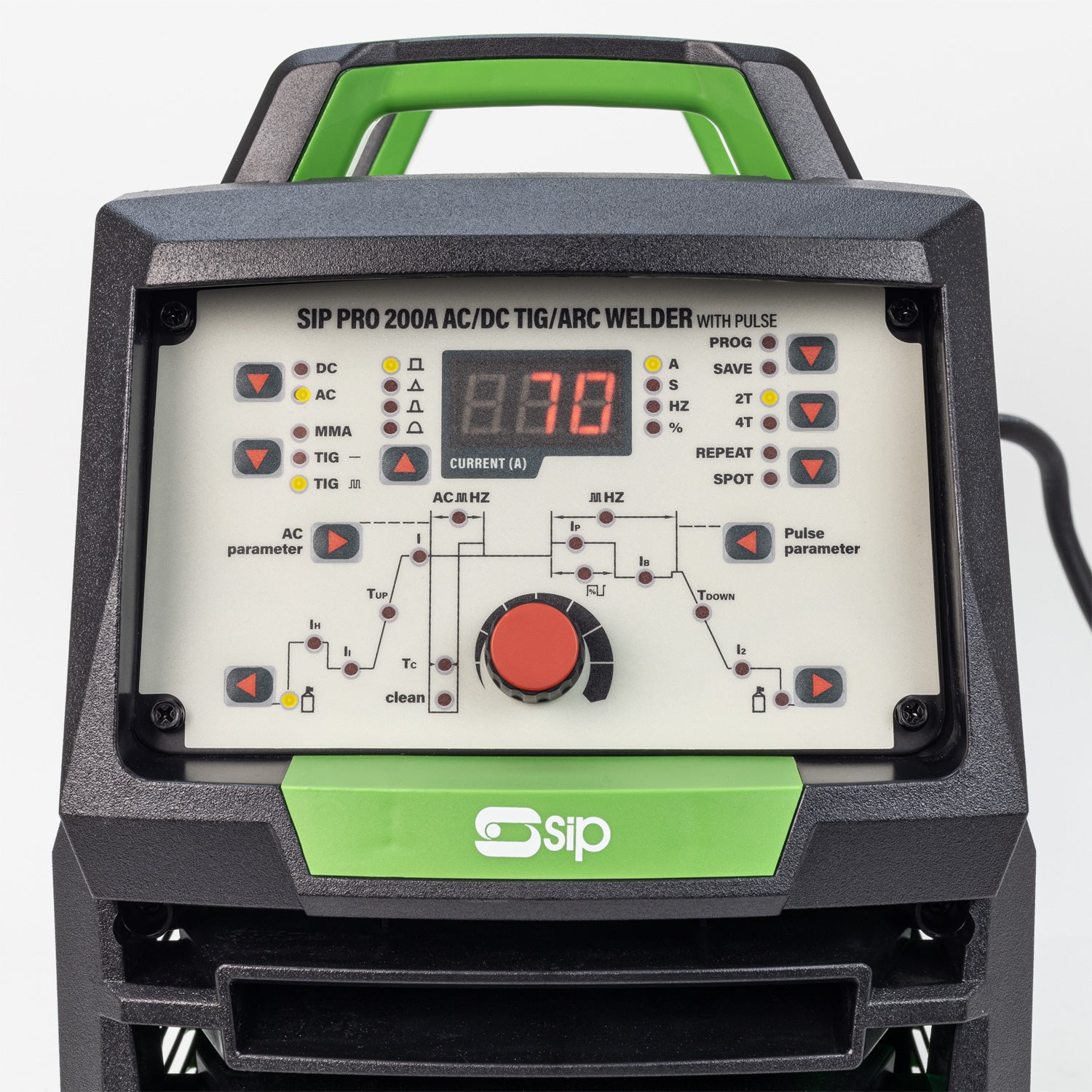

Featuring TIG Pulse functionality, a multi-stage pulse parameter program and 4 AC waveforms, the adaptable settings and high duty cycles are designed to meet specific user needs and ensure greater control of precision welds.

ITEM NO. 05795

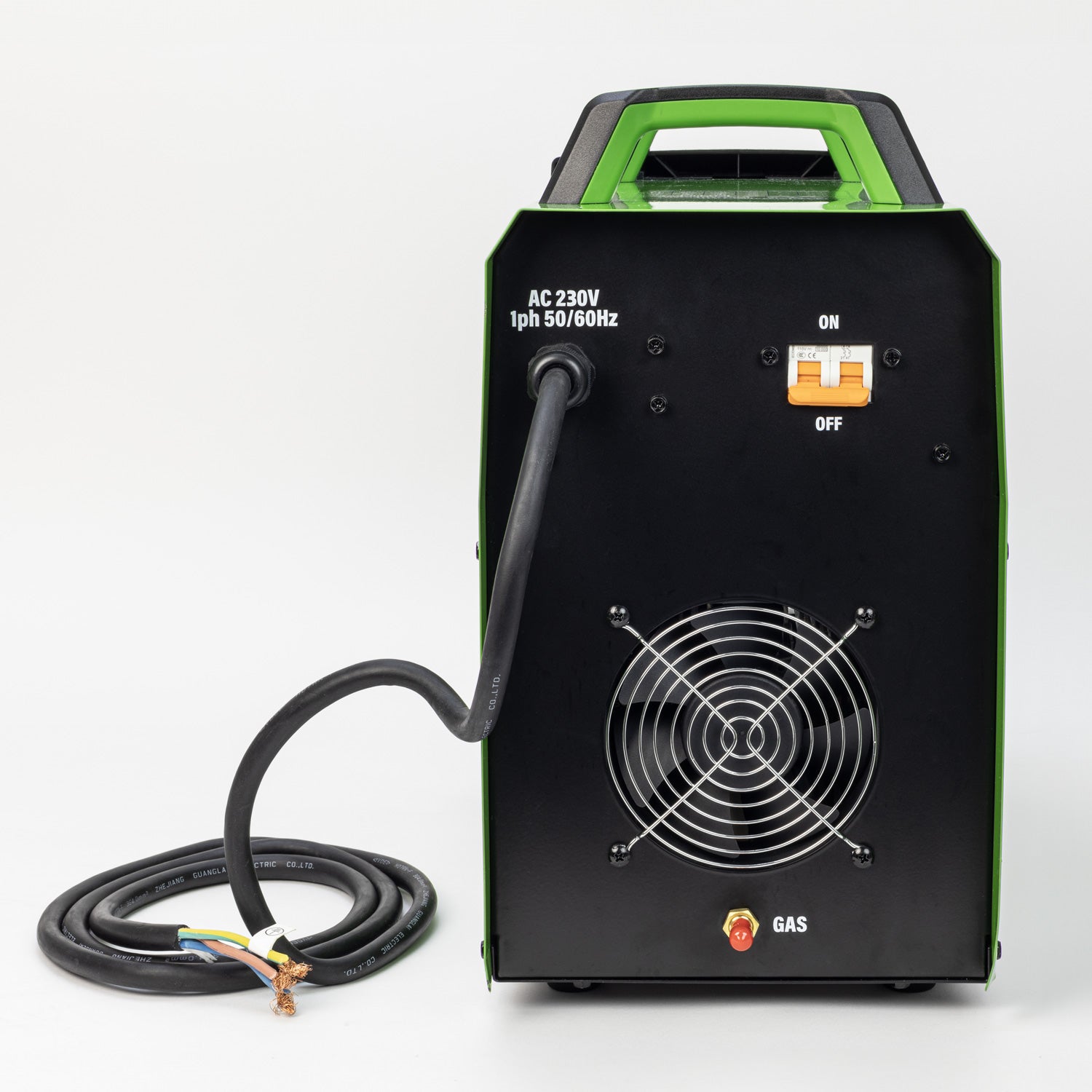

Input Supply: 230v (16A) (not supplied)
Output Current (TIG AC/DC): 5A - 200A (AC) / 5A - 200A (DC)

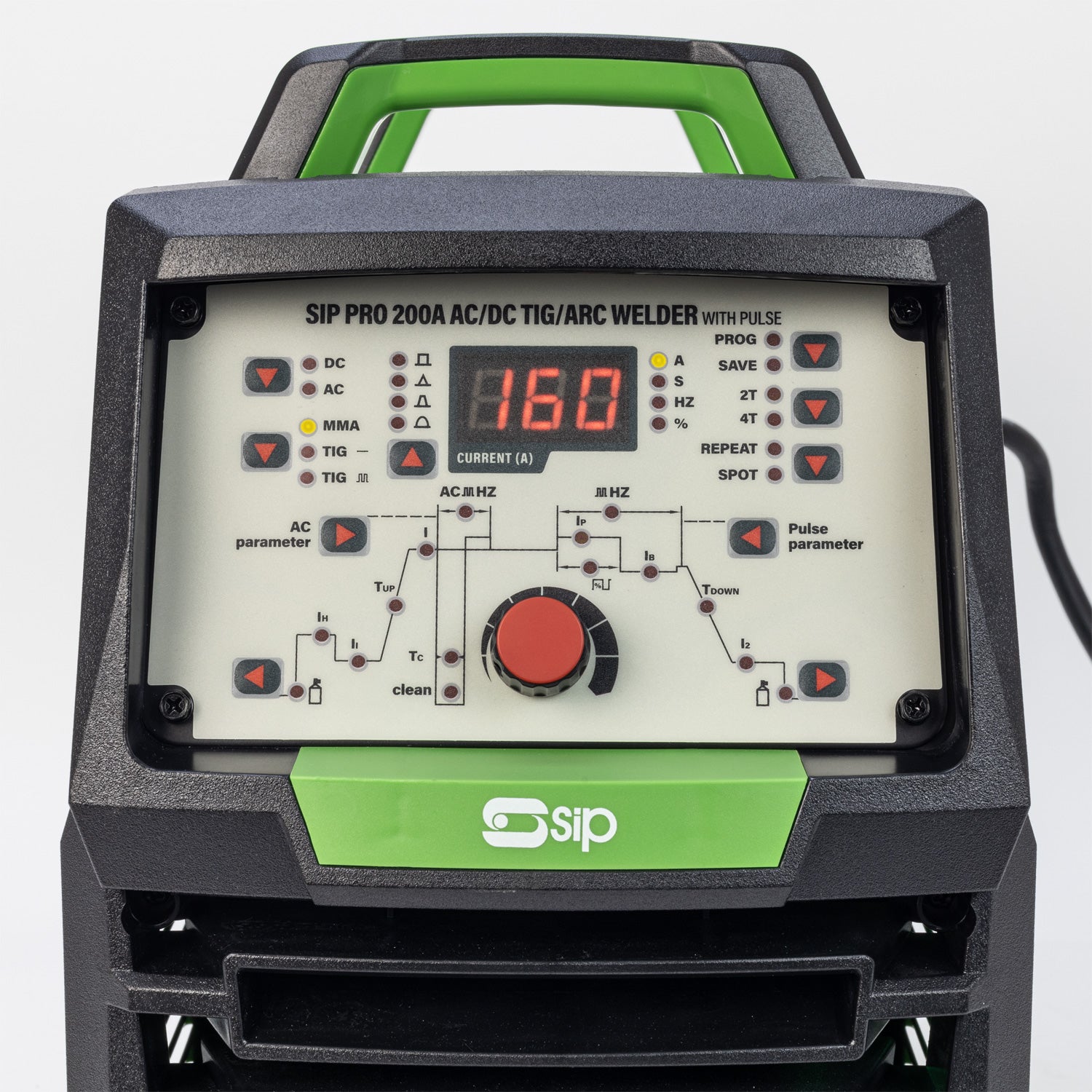

Output Current (MMA DC): 30A - 160A (DC)
Duty Cycle @ 40°C / 10min: 200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC) / 160A @ 25% / 110A @ 60% / 90A @ 100% (MMA)
Duty Cycle @ 20°C / 10min 200A @ 60% / 150A @ 100% (TIG AC/DC)
160A @ 60% / 130A @ 100% (MMA)
Protection: IP21S/H

AC/DC welding for greater versatility in professional applications

Dual TIG and ARC processes for flexibility at high duty cycles

TIG Pulse facility for a smoother and more controlled weld

Multi-stage pulse parameter adjustment for greater welding arc control

4 AC waveforms for superior welding control with different material types

Suitable for aluminium, stainless steel, mild steels, brass and copper

SIP 05795 PRO 200A AC/DC TIG/ARC Welder with Pulse

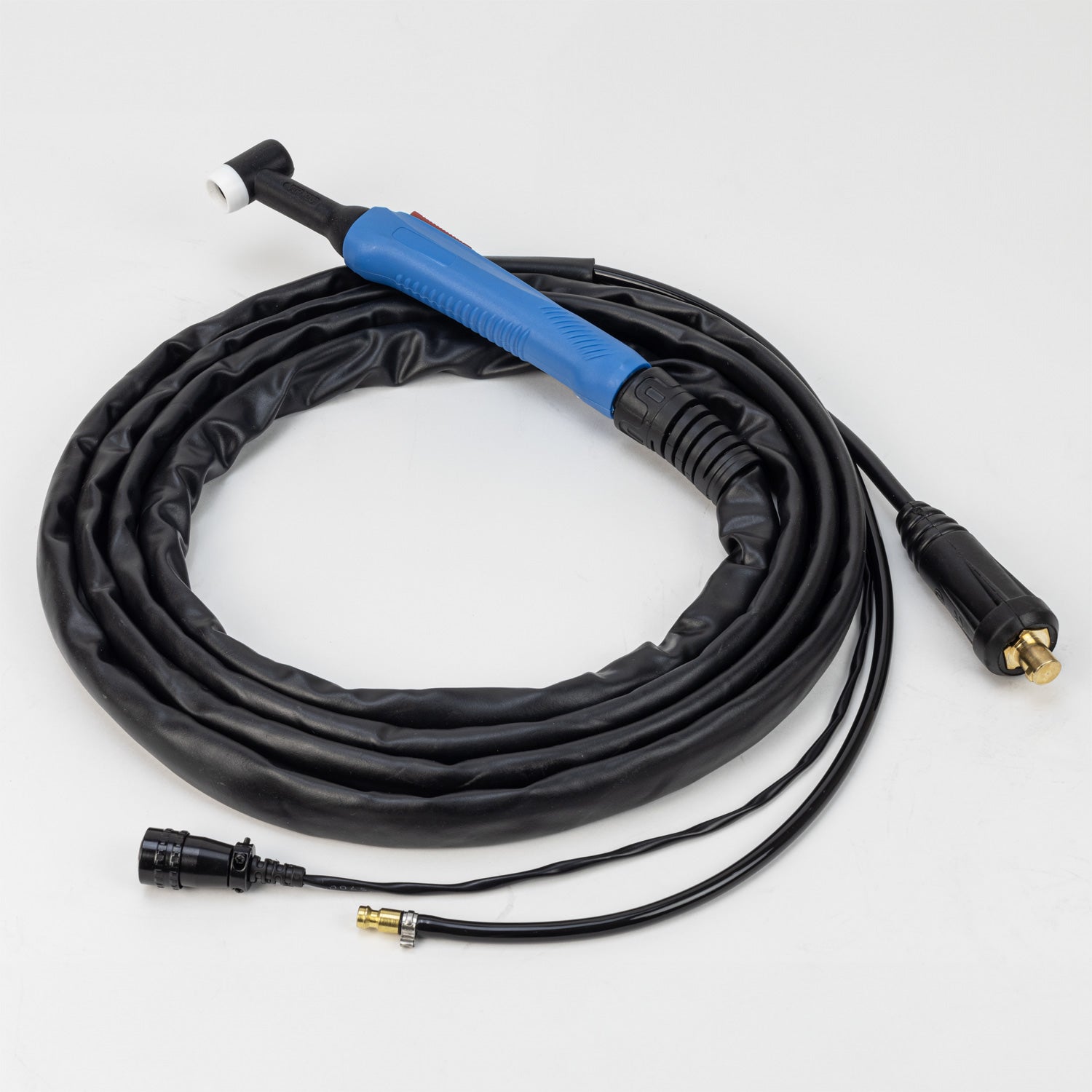

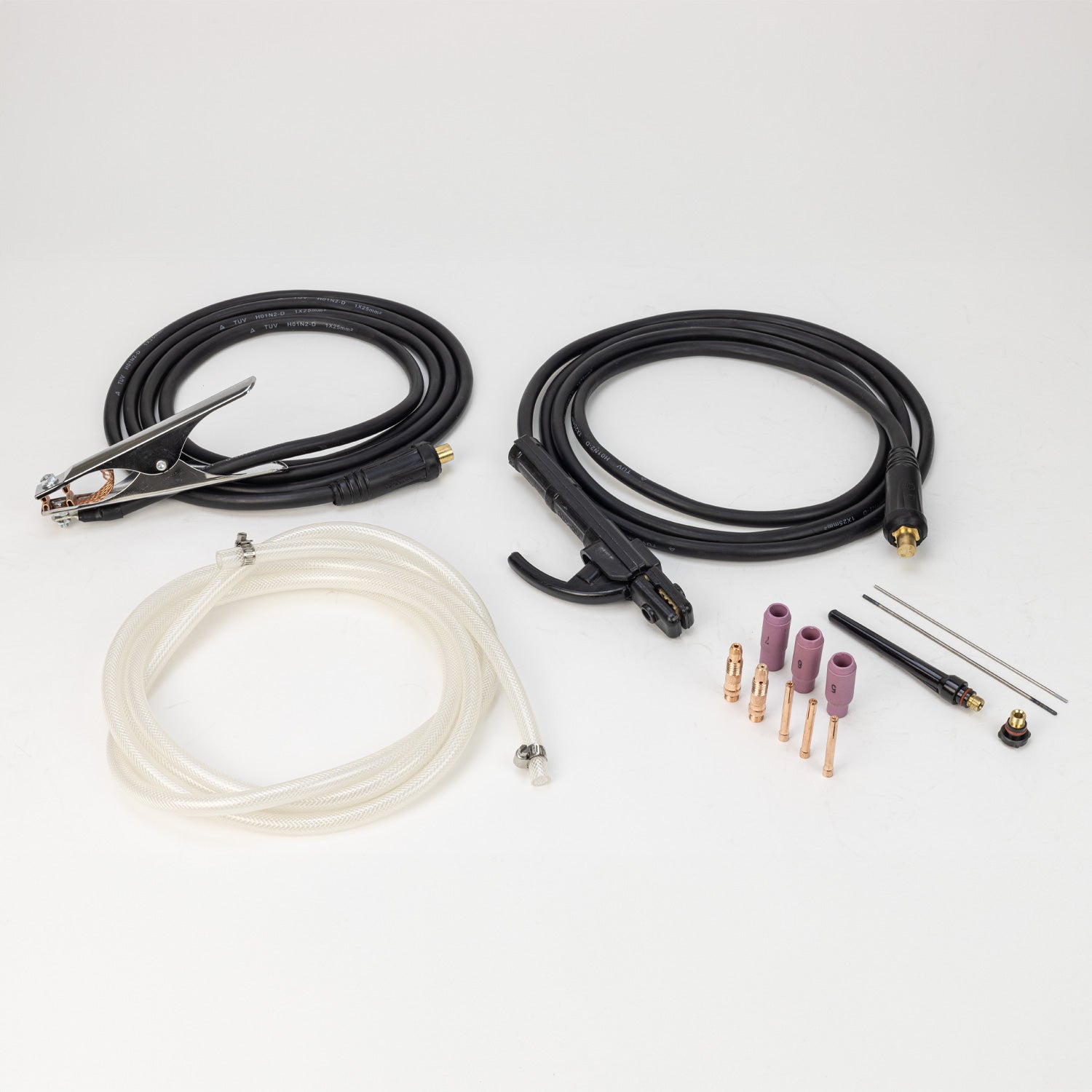

1x SIP WELDMATE® PRO 200A AC/DC TIG/ARC Inverter Welder with Pulse (230v/16A), 1x 4mtr Euro TIG torch (with 1x long back cap), 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3mtr gas hose with clamps, 1x short back cap, 2x zirconinated tungsten electrodes, 2x collets, 2x collet bodies and 2x ceramic shrouds.
