SIP 05740CART WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Welder with Cart Package

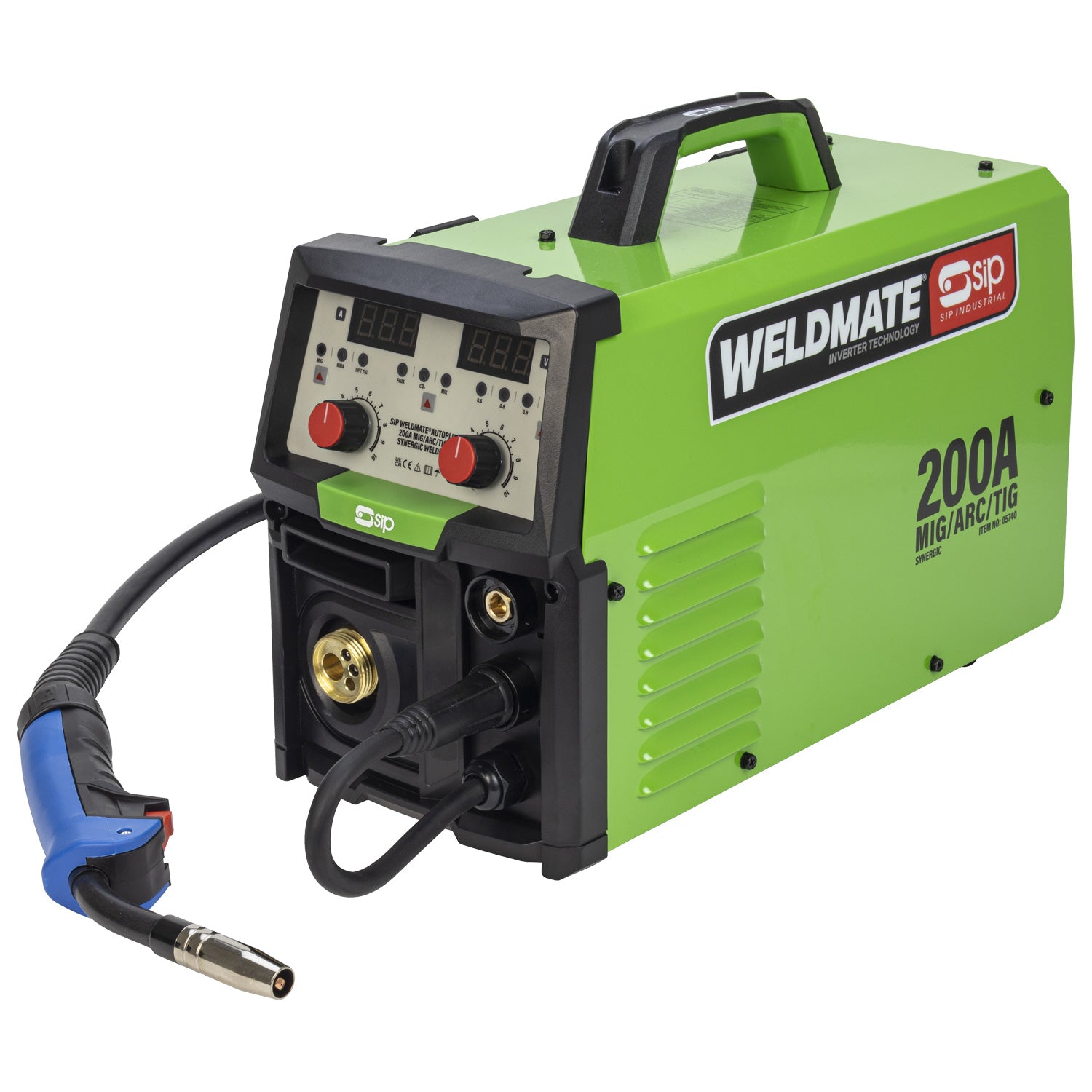

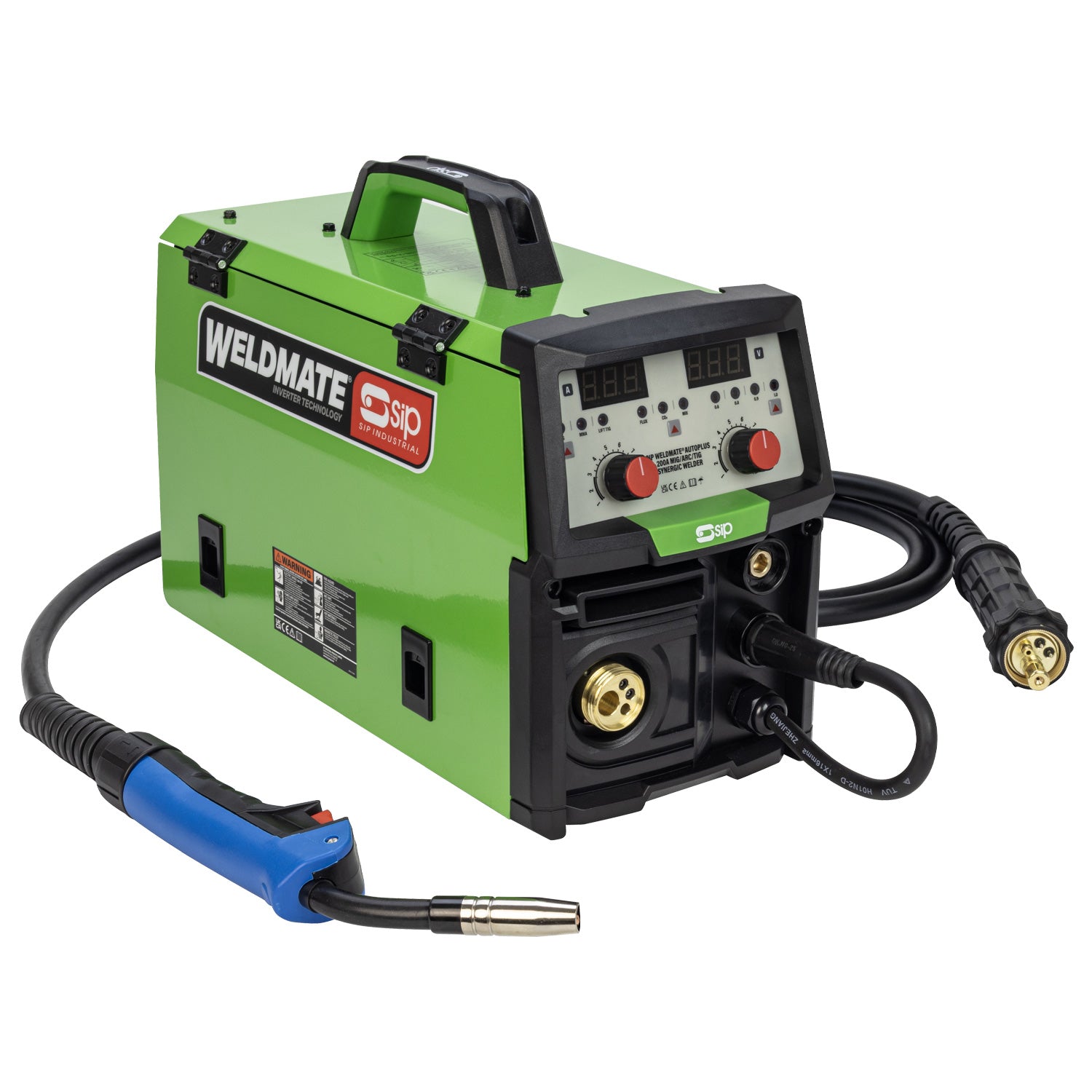

The SIP WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Inverter Welder with Cart is a multi-process inverter welder specifically designed for use in automotive and garage environments.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.

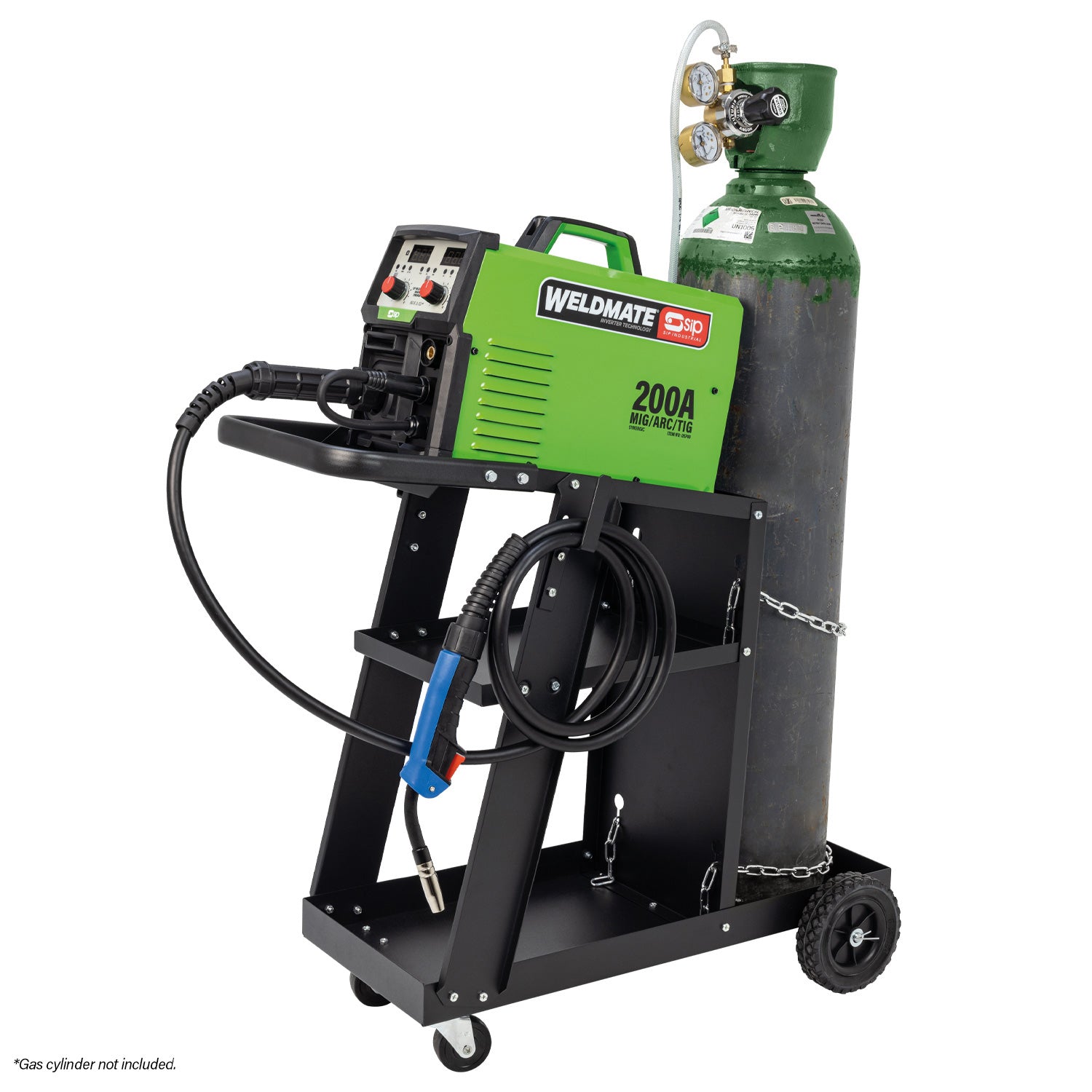

This package is complete with the 05714 SIP 3-Tier Welding Cart, which is suitable for gas cylinders up to 50kg.

ITEM NO. 05740CART

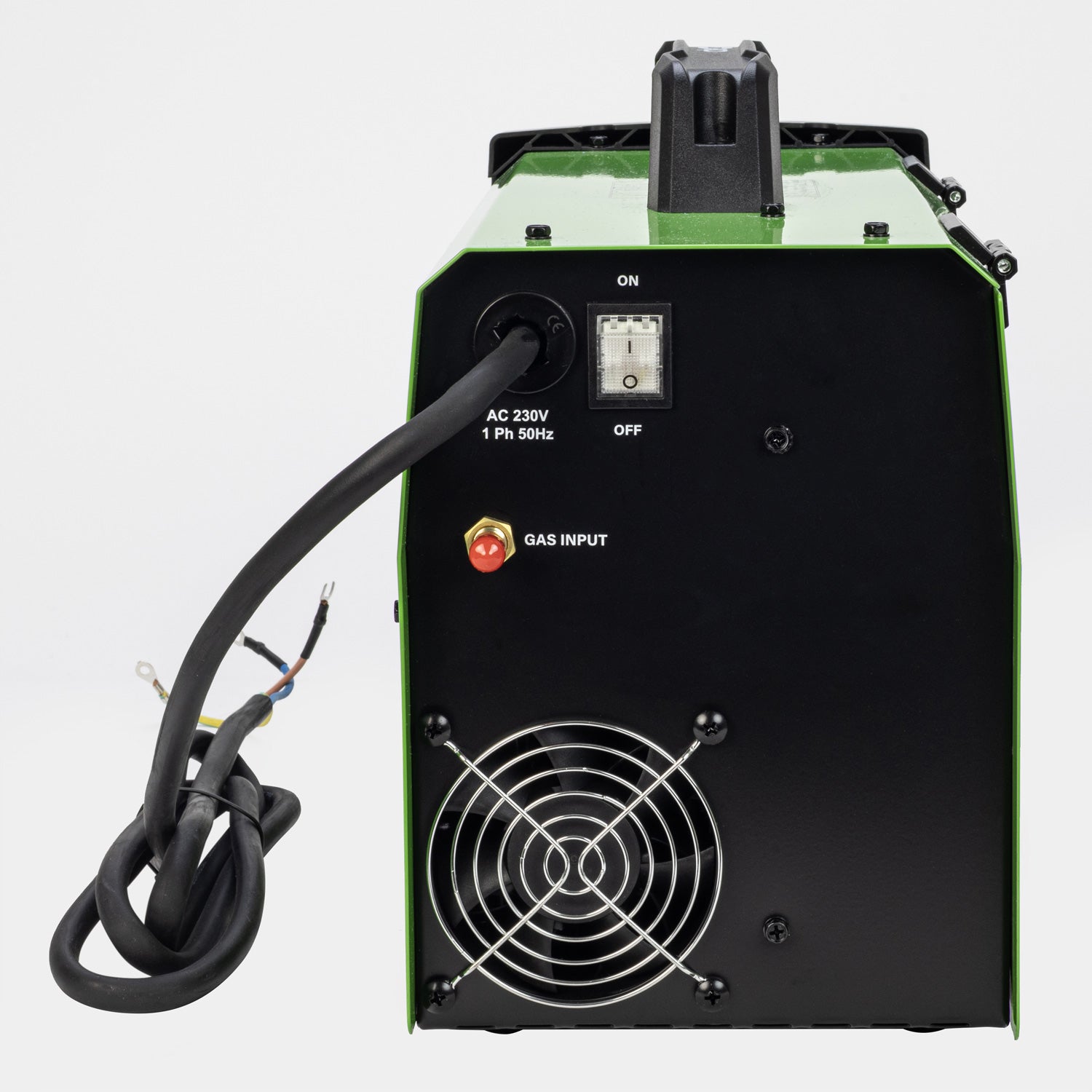

Input Supply: 230v (16A)
Output Voltage: 16.5v - 24v (MIG) / 20.8v - 28v (ARC) / 10.8v - 18v (TIG)
Output Current: 20A - 200A (MIG) / 20A - 200A (ARC) / 20A - 200A (TIG)
Duty Cycle @ 20°C: 200A @ 30% (MIG) / 200A @ 30% (ARC) / 200A @ 30% (TIG)
Wire Diameter: ⌀ 0.8mm - 0.9mm
Wire Spool Size: 0.7kg, 5kg
Welding Material Thickness: 0.8mm - 7mm (mild steel)
Protection / Insulation 21S / H

Multi-process MIG/ARC/TIG welder for greater flexibility

Pure Synergic Control for more consistent and higher quality welds

Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)

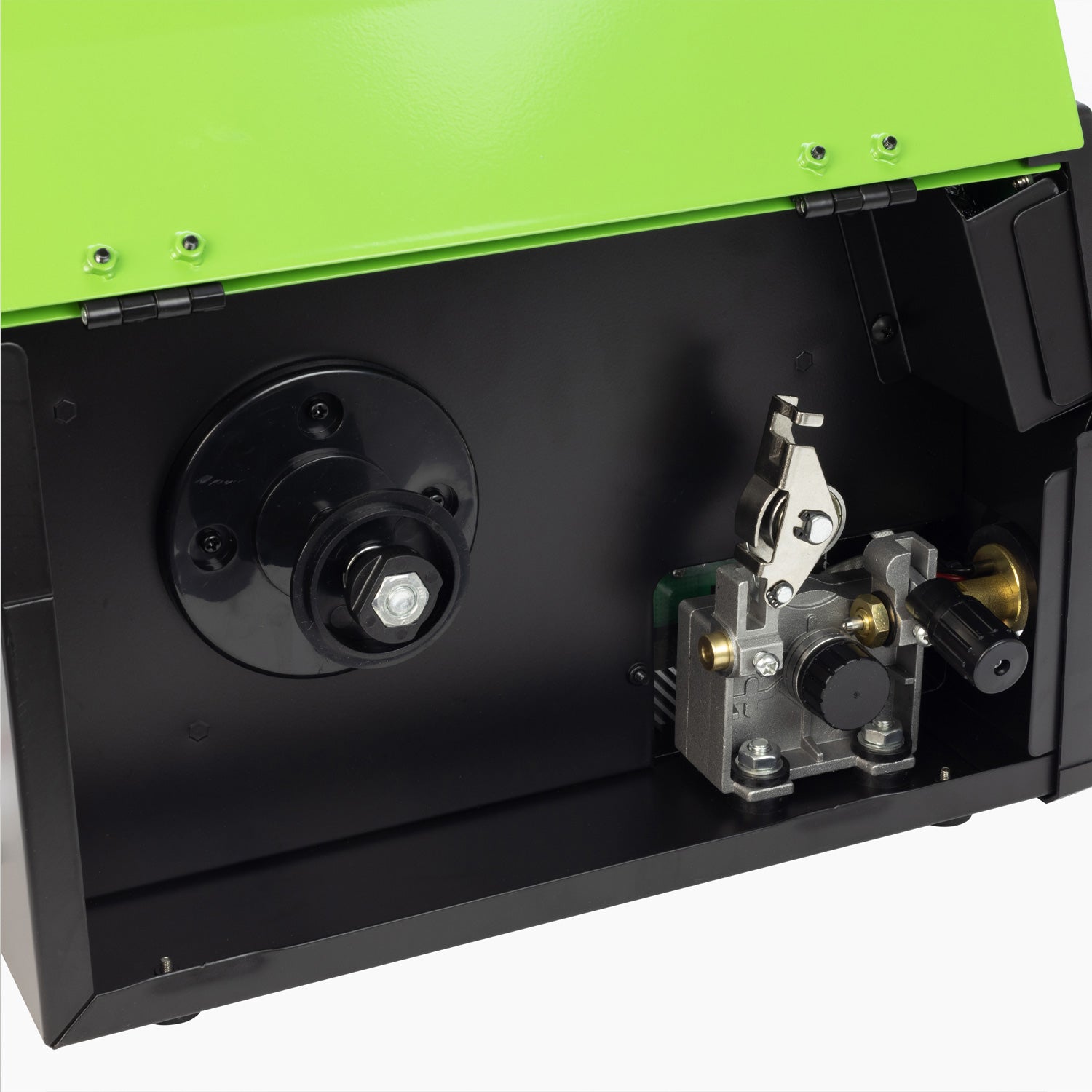

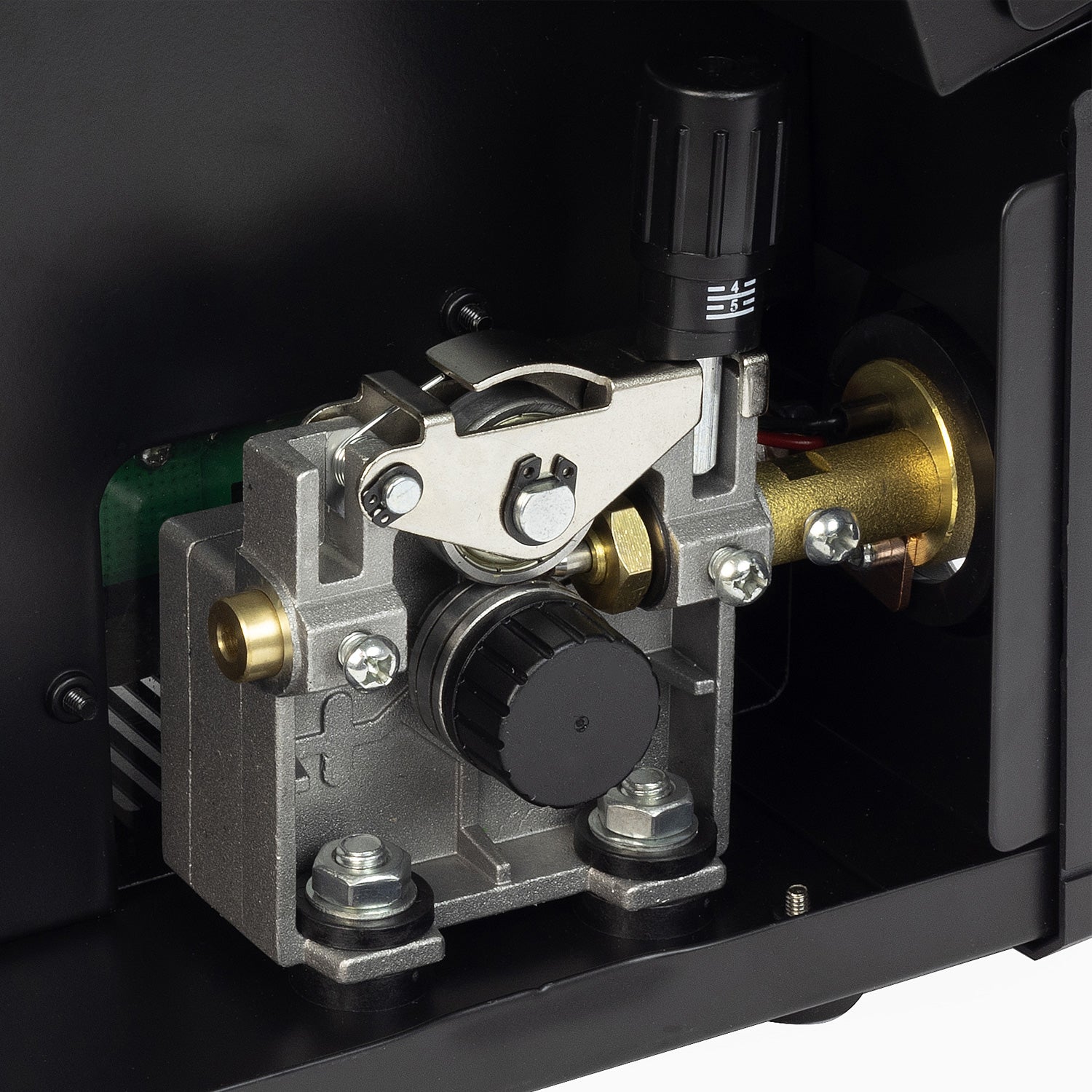

Heavy-duty aluminium wire feeder for smooth consistent flow of wire

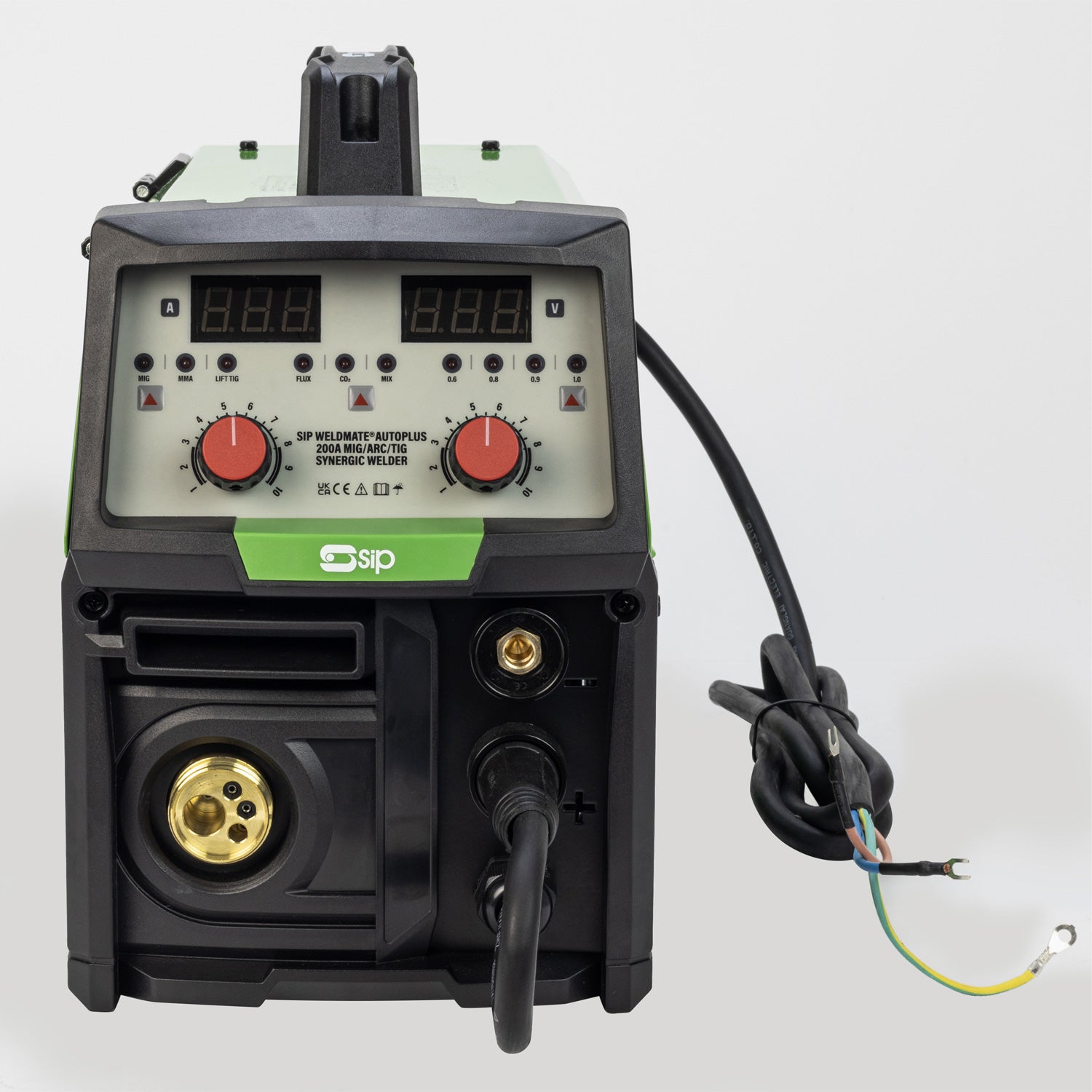

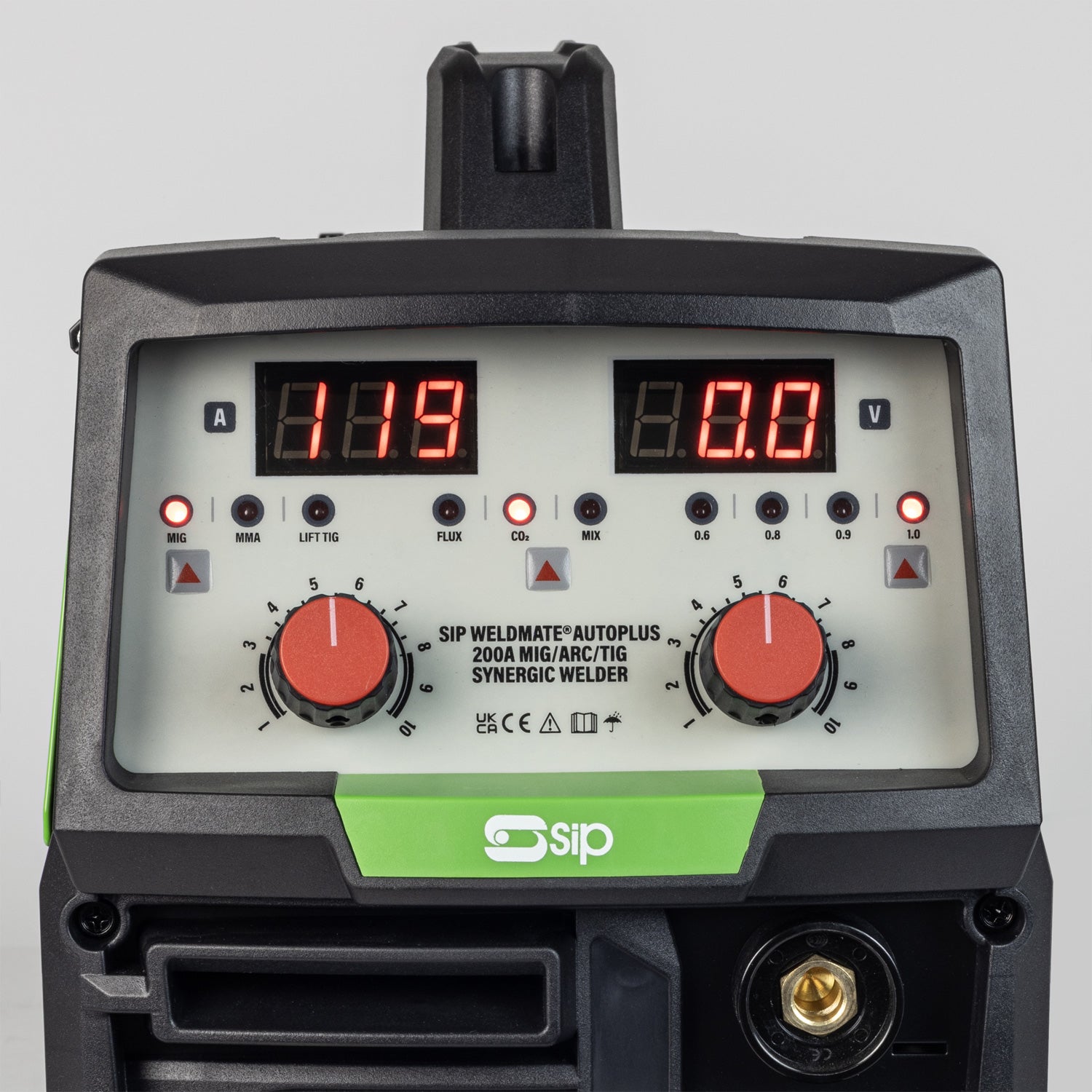

Intuitive control panel to select between process, gas and wire size

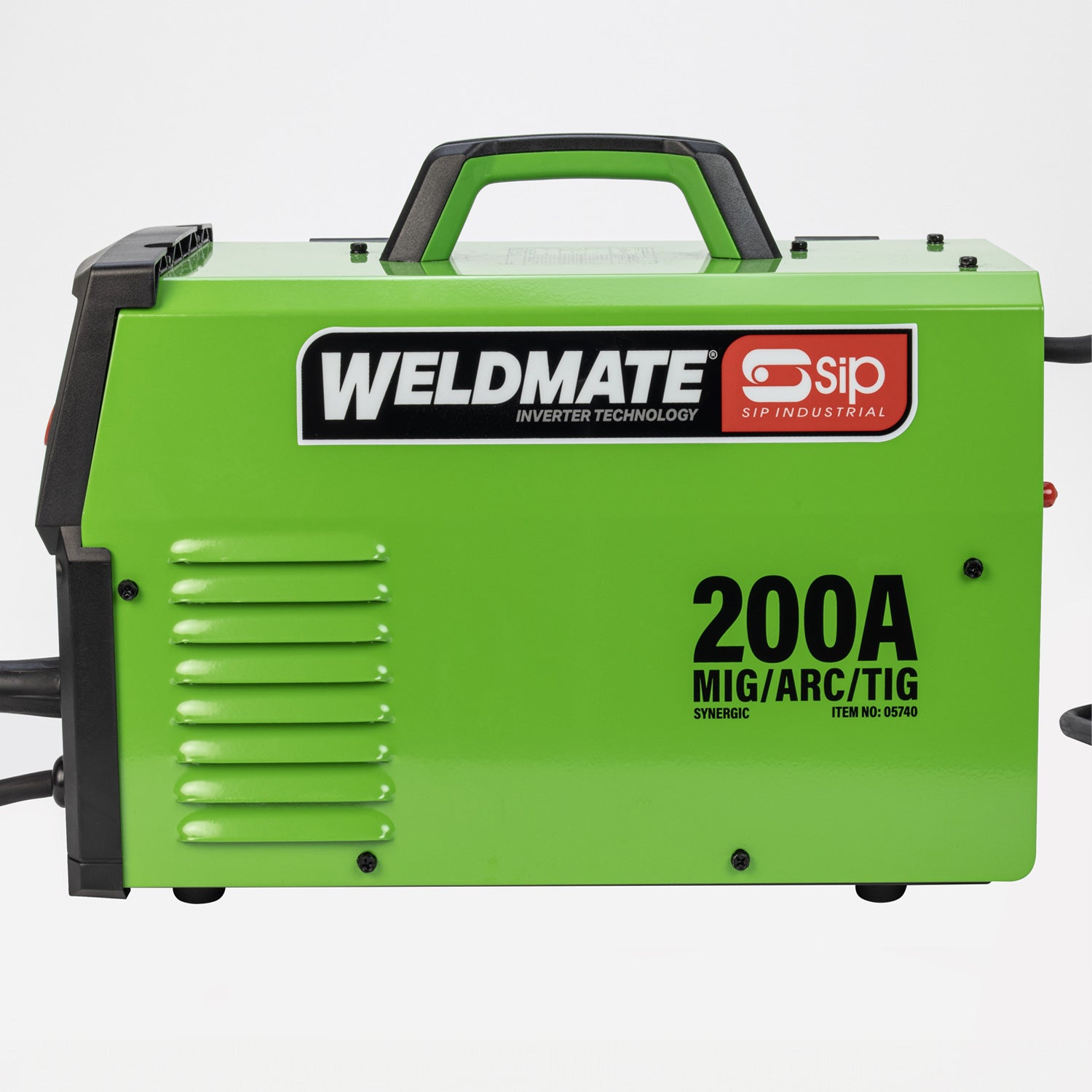

Metal casing with strong-grip carry handle for long life use

SIP 05740CART WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Welder with Cart Package

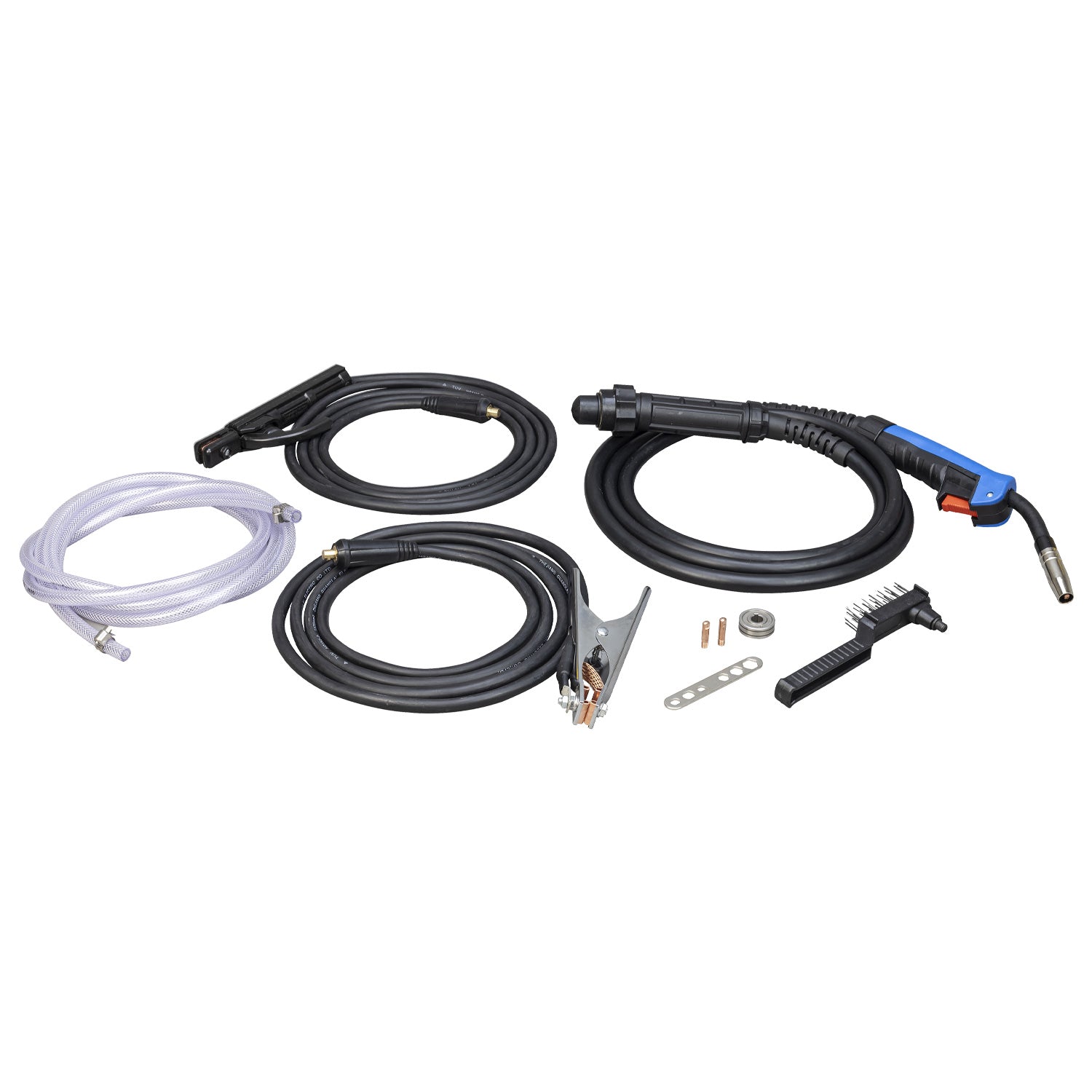

1x SIP WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Inverter Welder (230v/16A), 1x SIP 3-Tier Welding Cart, 1x 3mtr Euro MIG torch, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3mtr gas hose with clamps, 2x feed rollers, 2x contact tips, 1x torch spanner and 1x chipping hammer/brush. TIG torch sold separately (Item 08206A recommended).
