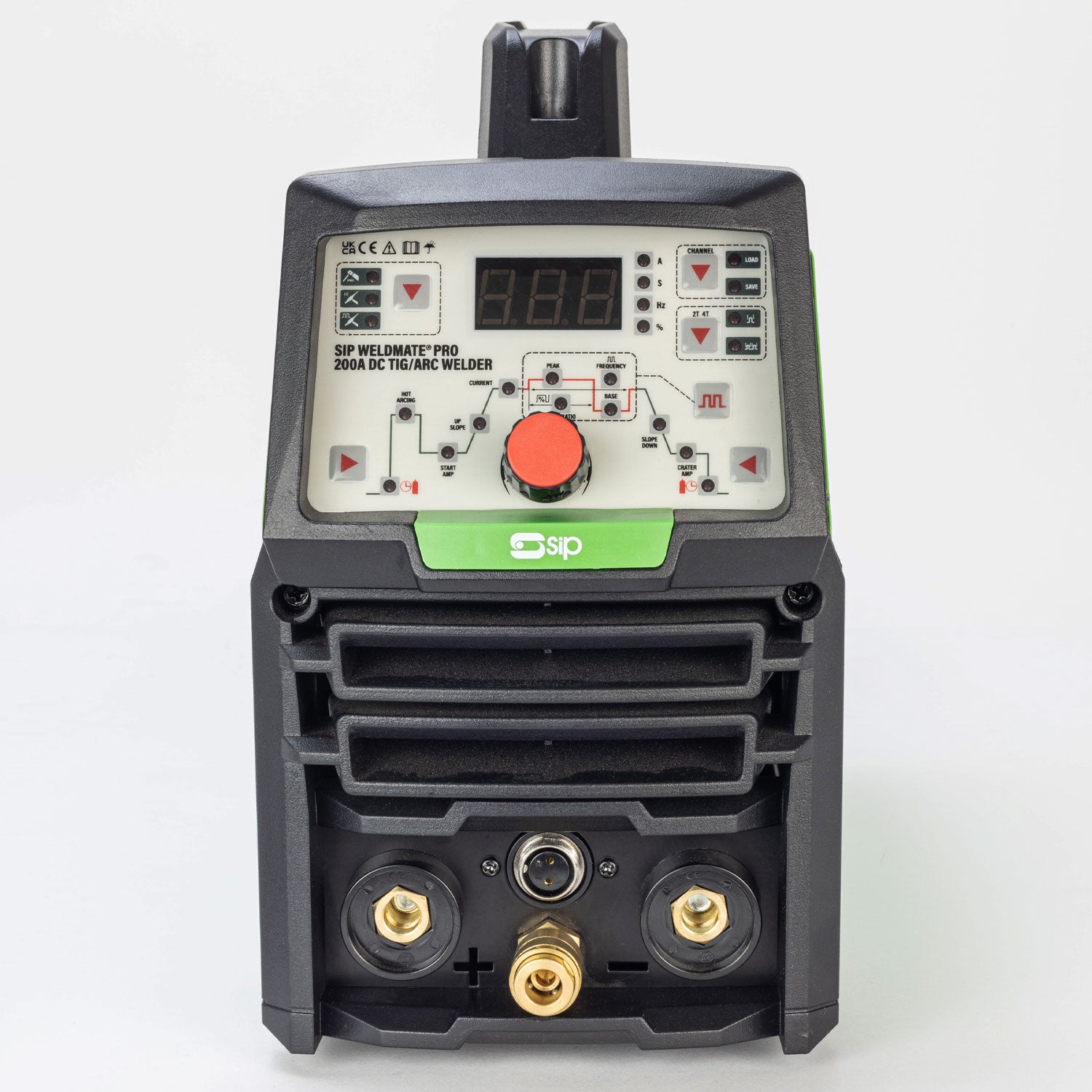

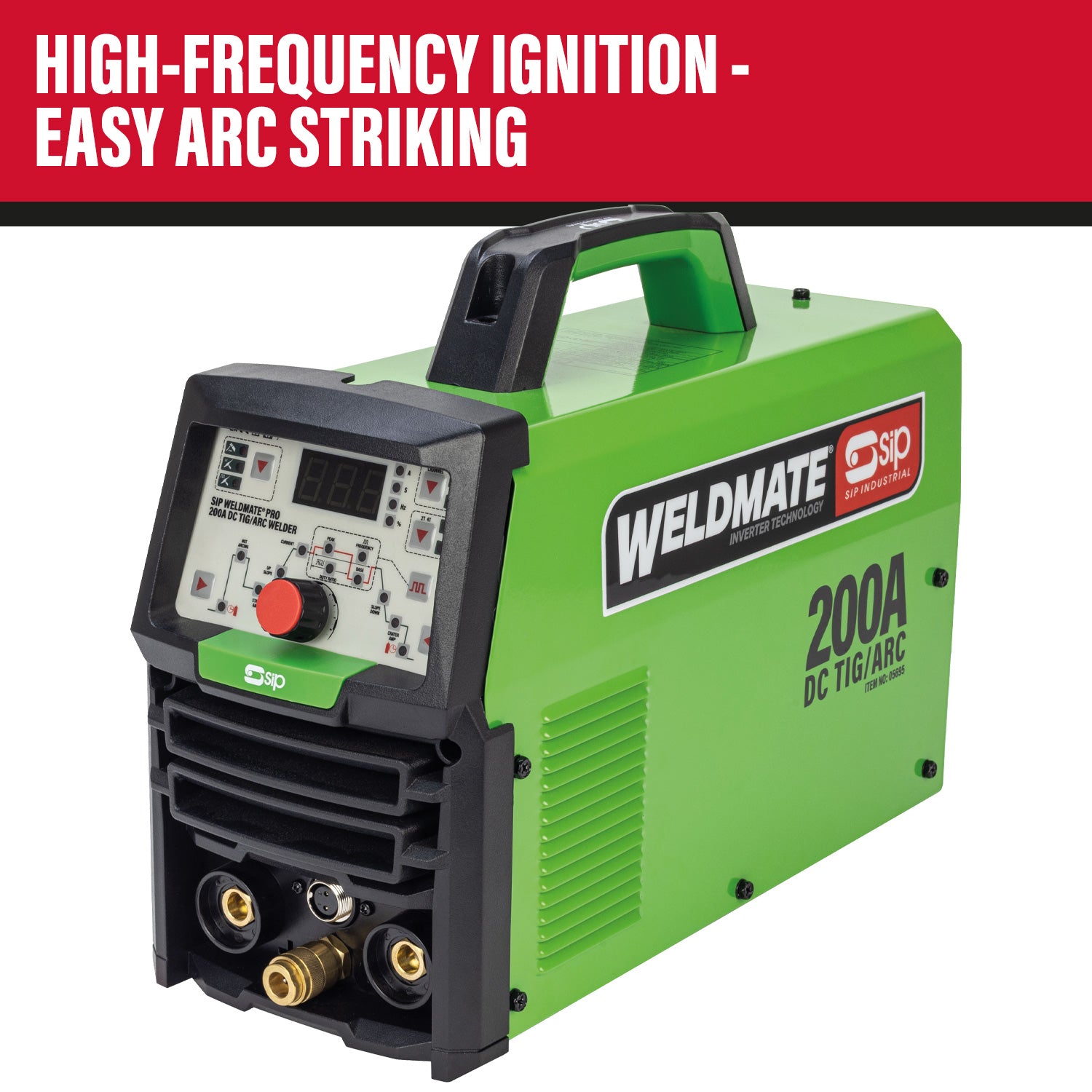

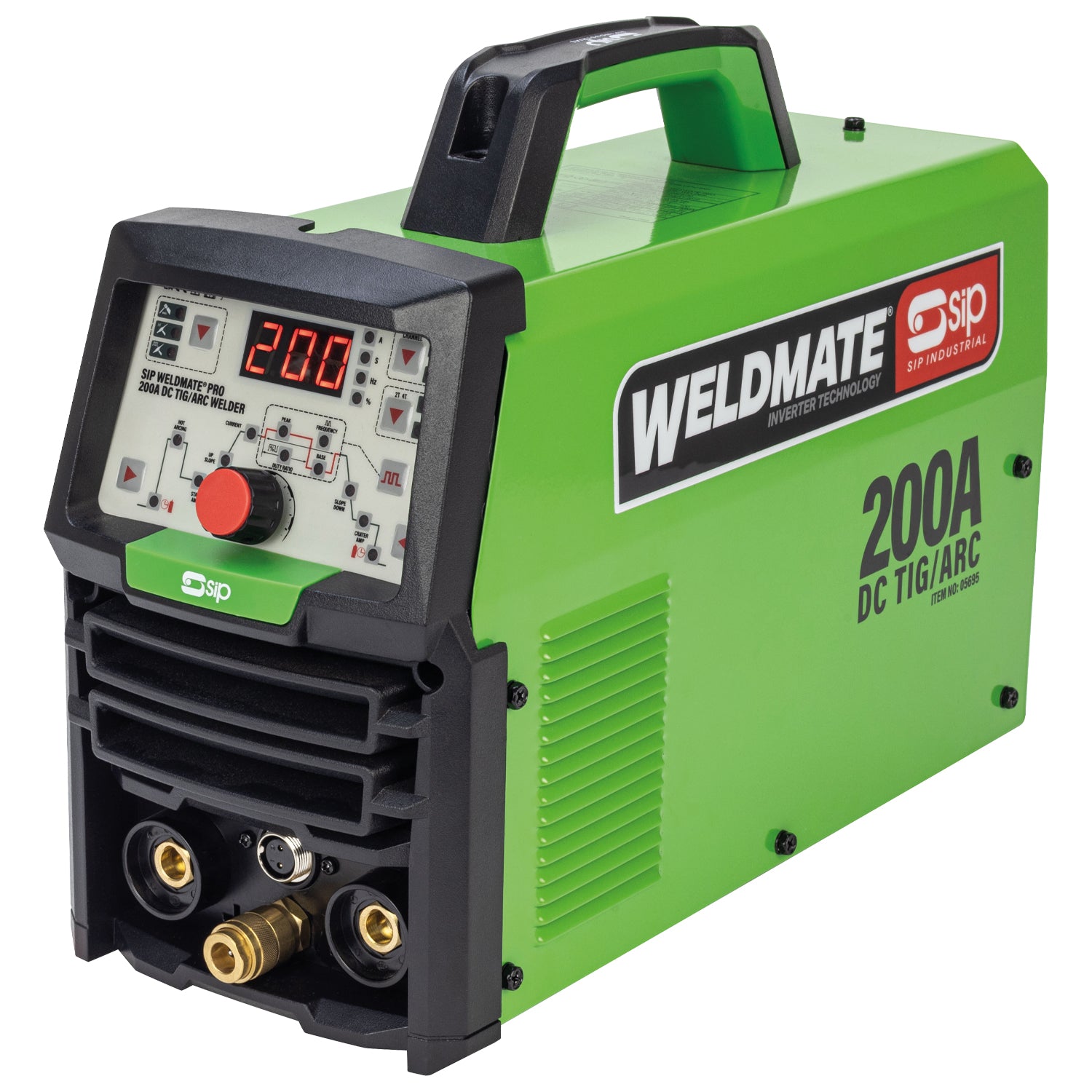

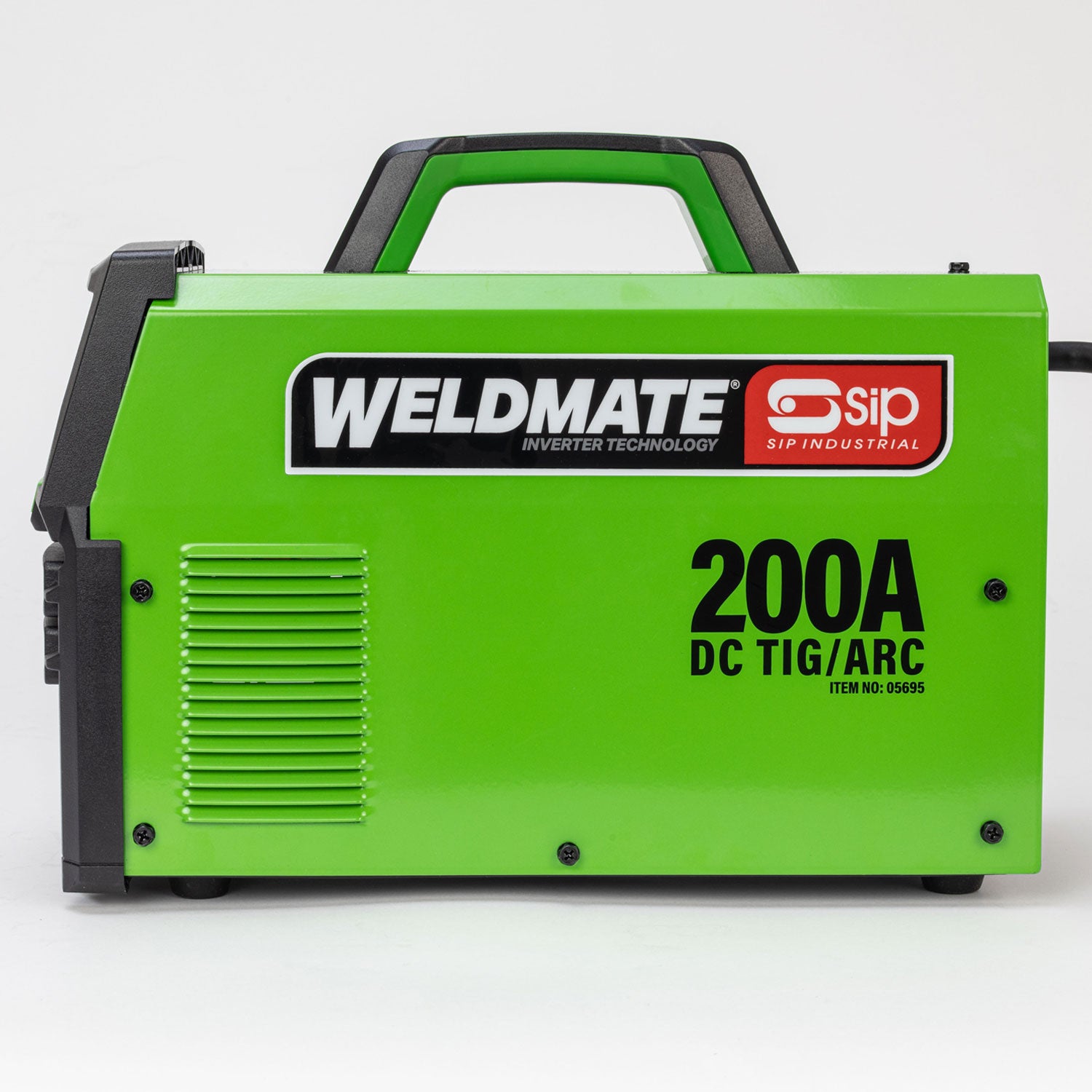

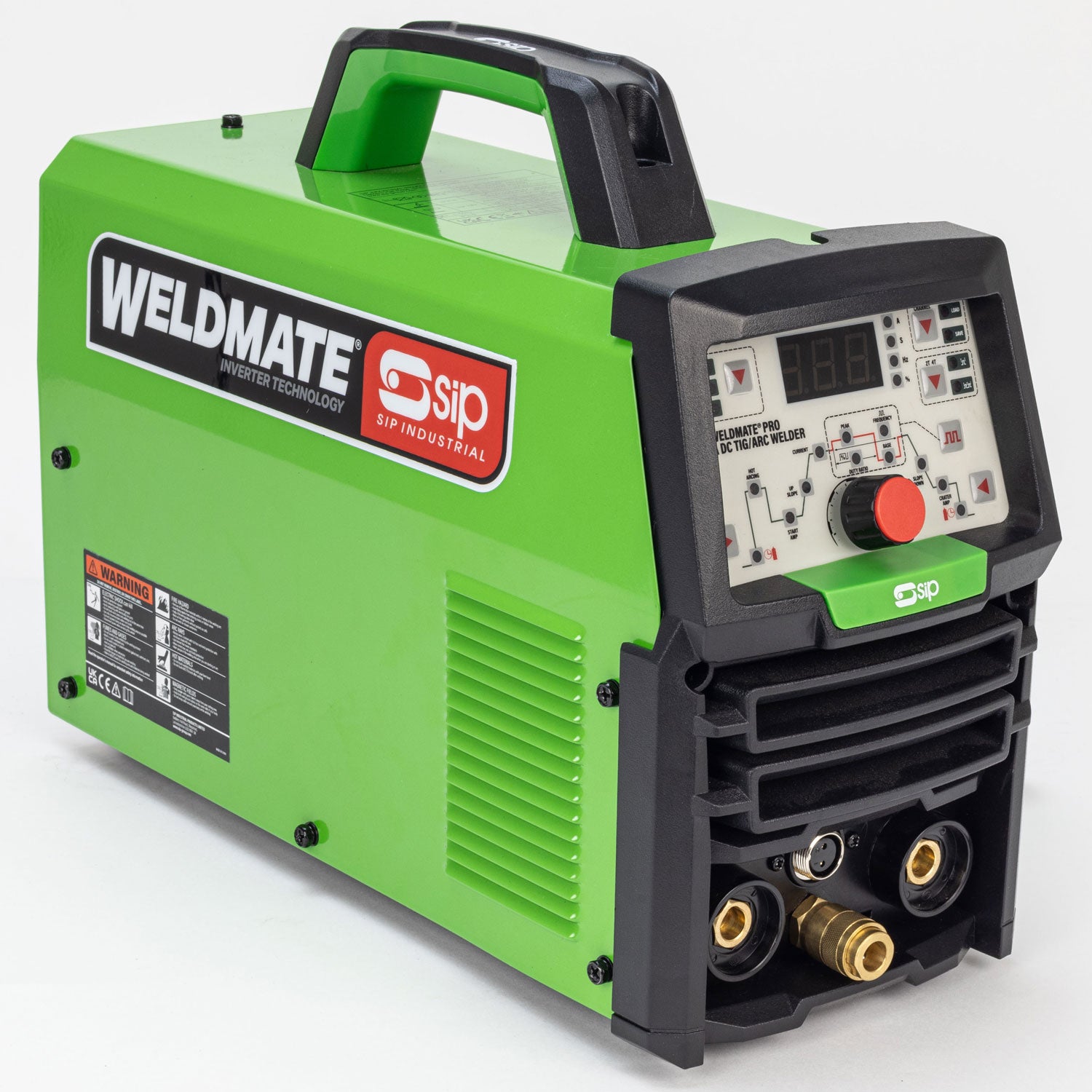

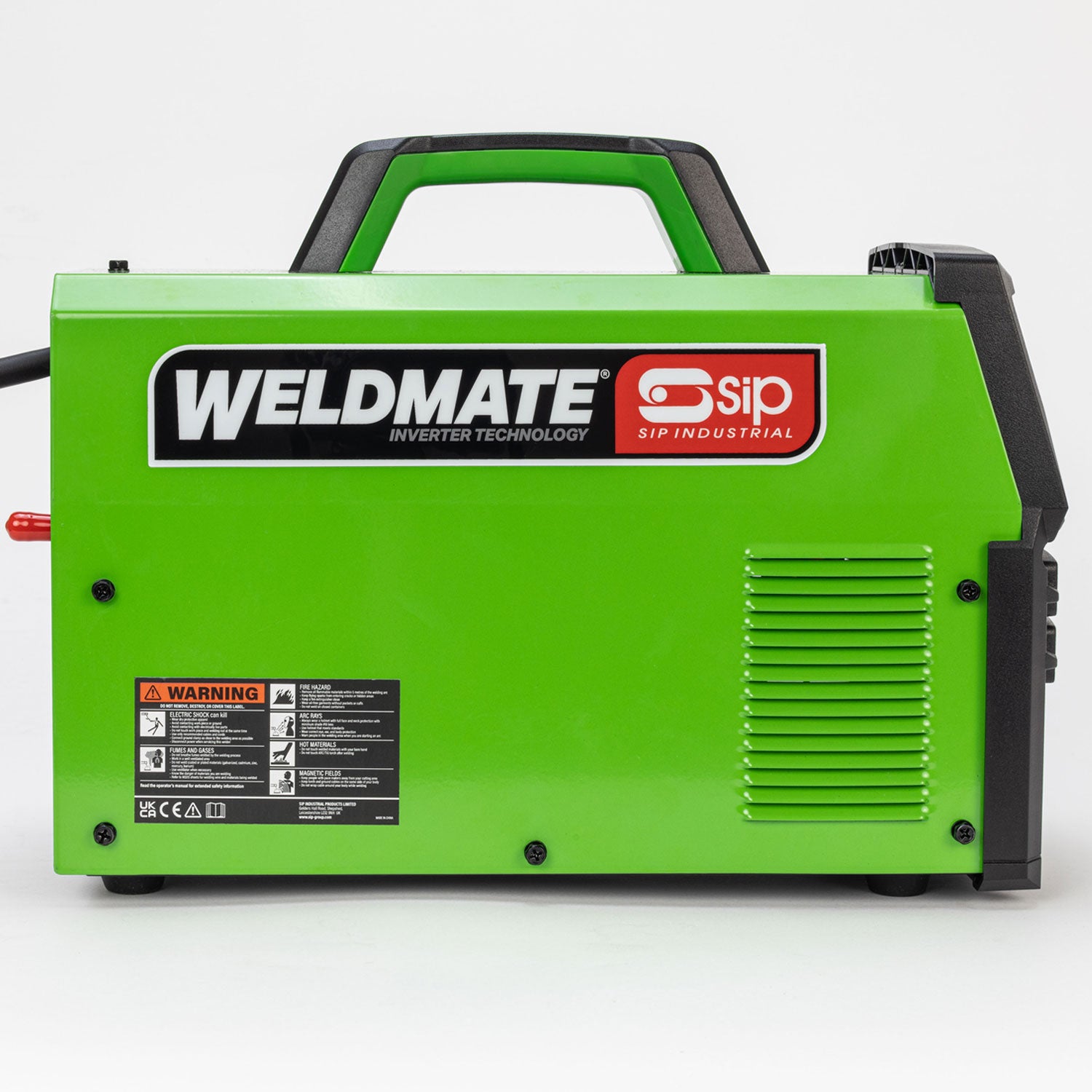

SIP 05695 WELDMATE® PRO 200A DC TIG/ARC Inverter Welder

The SIP WELDMATE® PRO 200A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops and sheet metal applications.

Powerful, compact and lightweight, this inverter welder also features and 8-stage TIG welding sequence with parameters for 'Pre' and 'Post Gas' to ensure a clean and high-quality weld, while Pulse TIG parameters offer even greater welding power and arc control for skilled professional applications.

Fully compliant wth Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

ITEM NO. 05695

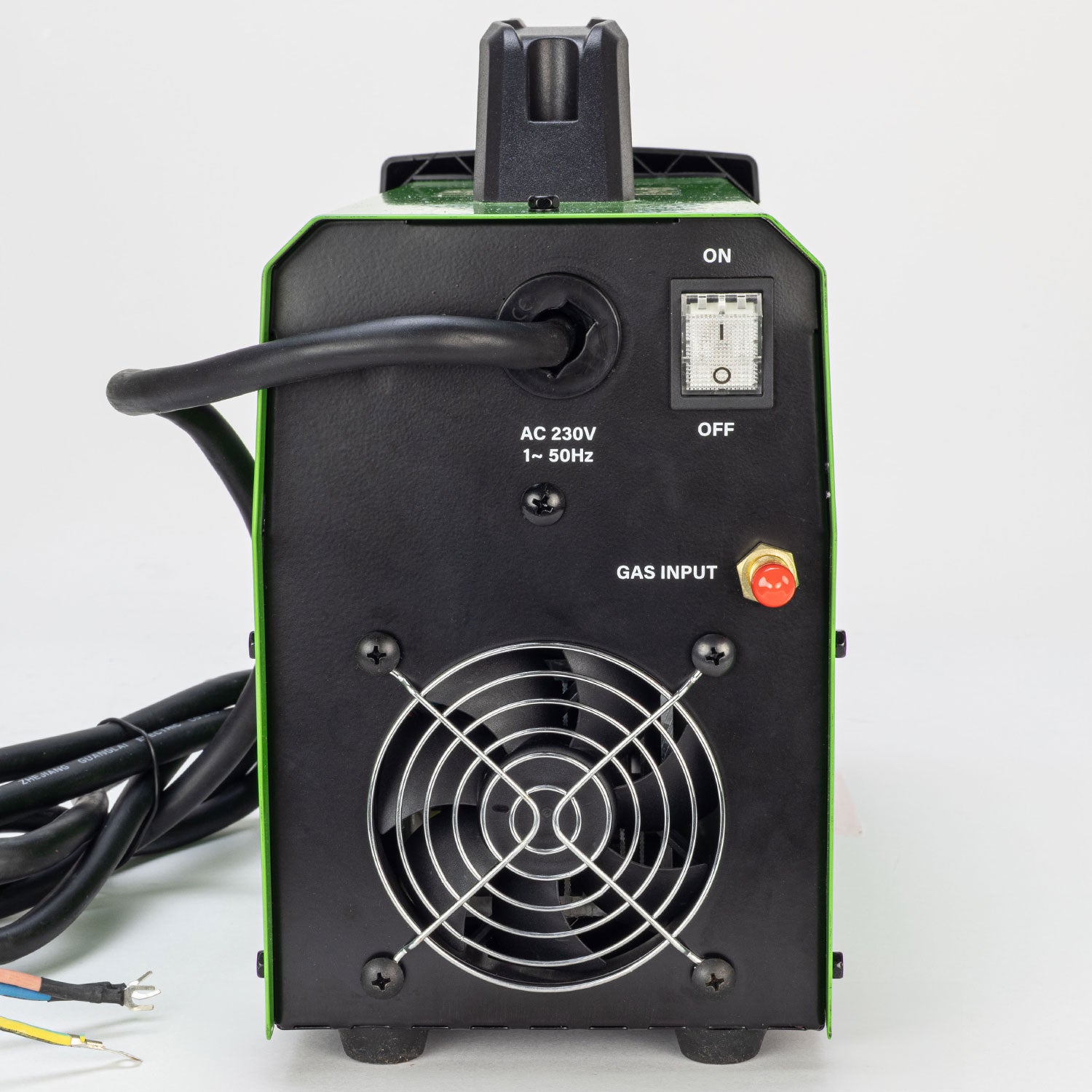

Input Supply: 230v (16A)
Output Current: 10A - 200A (TIG) / 10A - 160A (MMA)
Output Voltage: 10.4v - 18v: 70v DC Open Circuit Volts (TIG) / 20.4v - 26.4v: 70v DC Open Circuit Volts (MMA)
Duty Cycle @ 20°C: 200A @ 30% (TIG) / 200A @ 30% (MMA)
Welding Material Thickness: 0.5mm - 7mm (mild steel) (TIG) / 1.5mm - 8mm (mild steel) (MMA)
Protection / Insulation F

Dual process TIG/ARC DC welder for greater versatility at high duty cycles

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

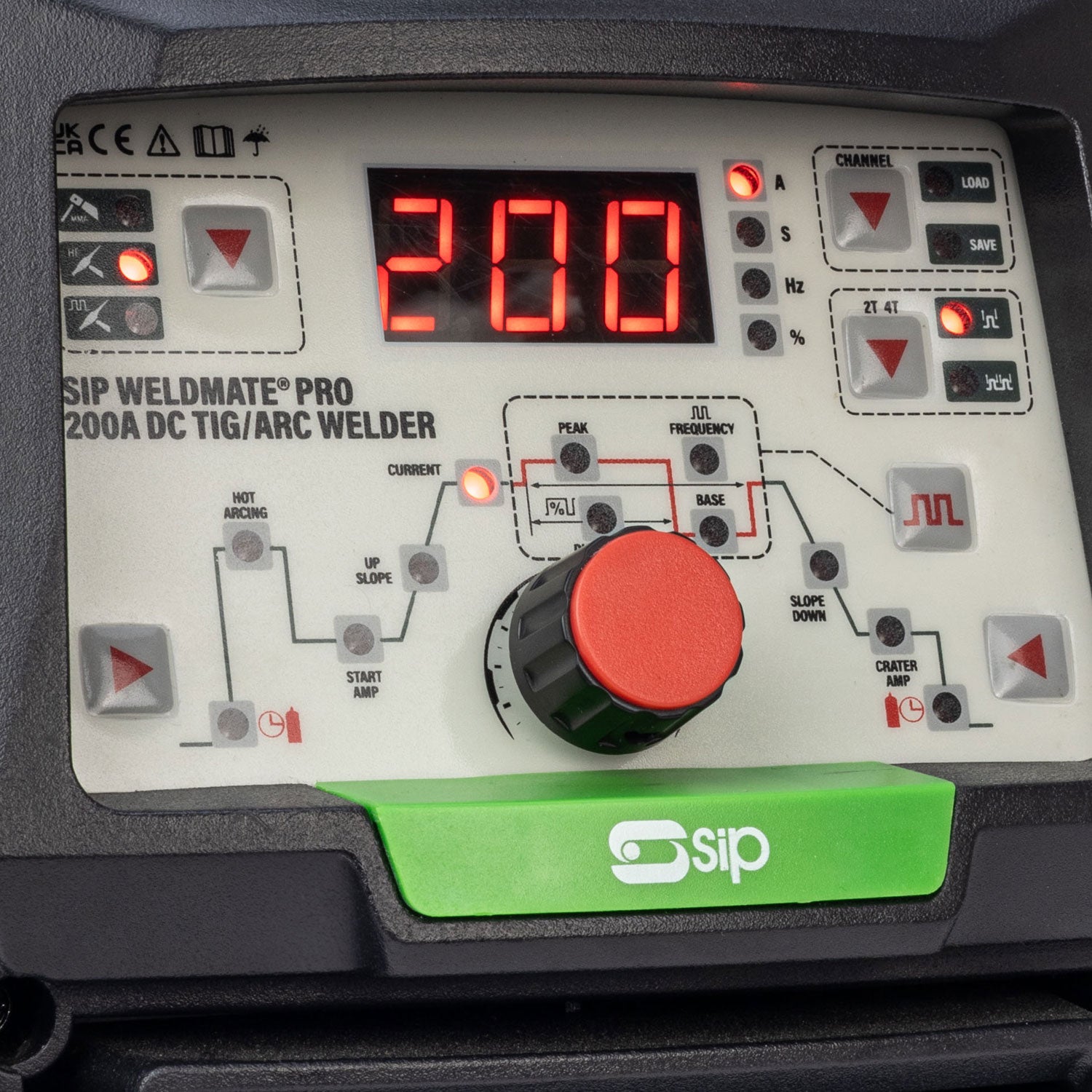

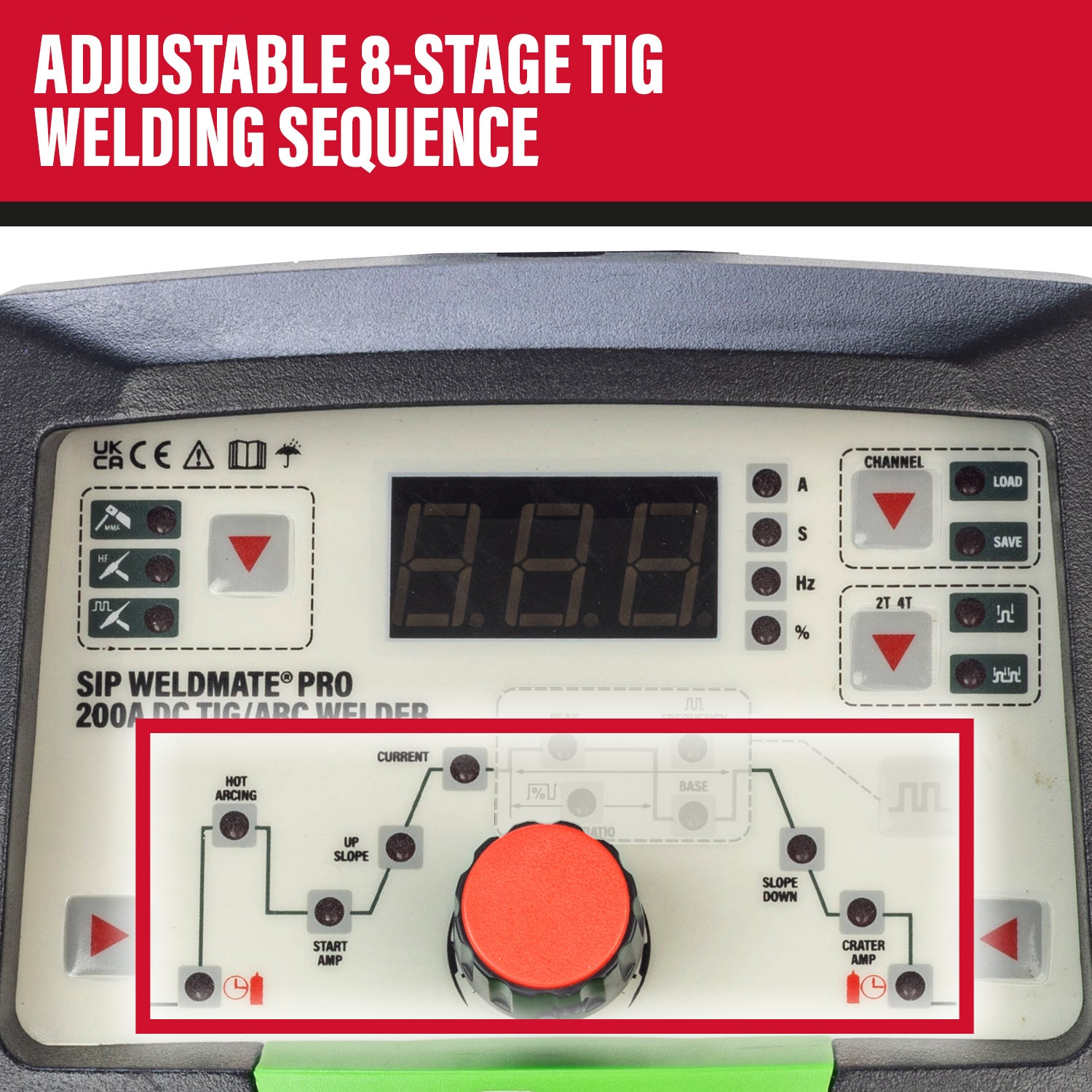

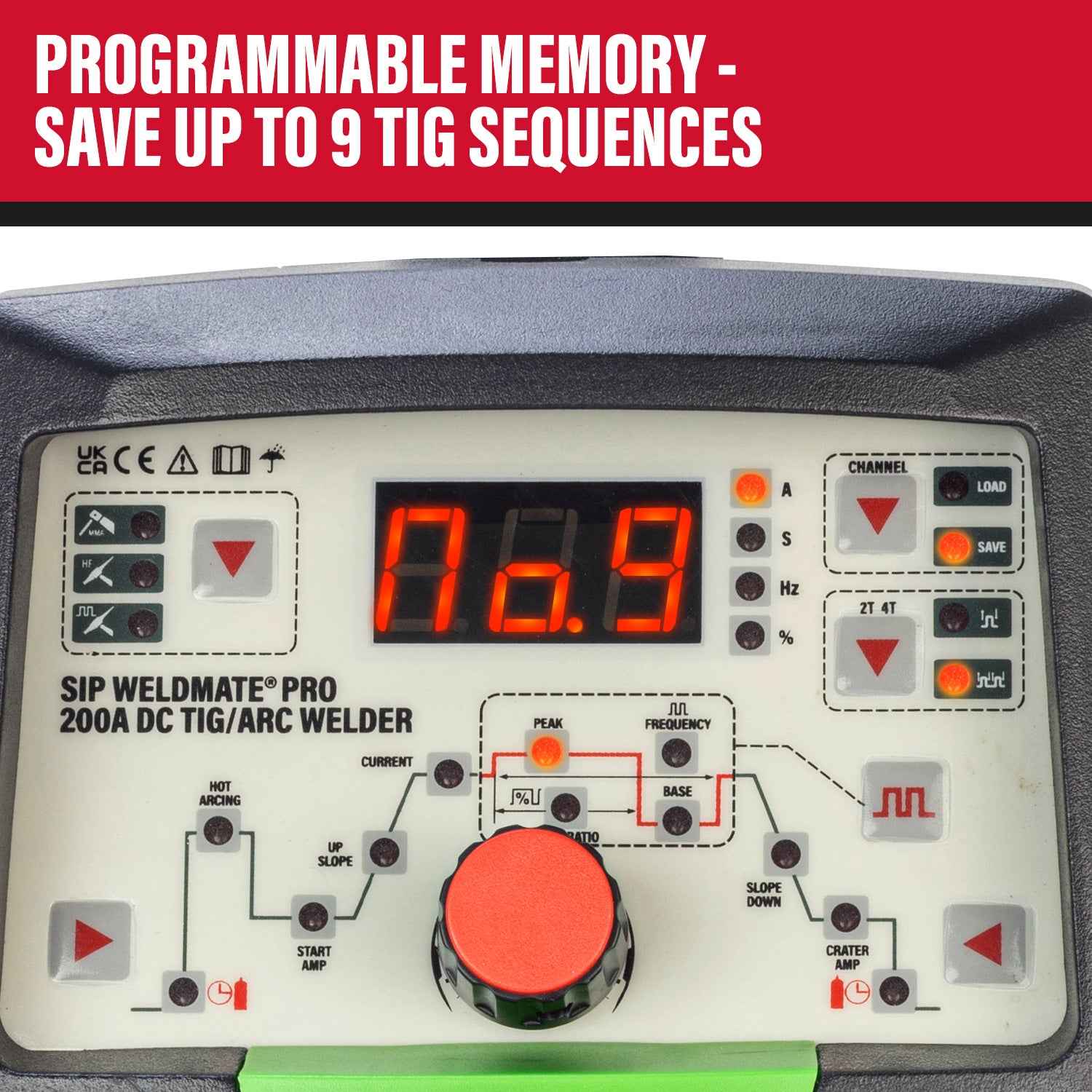

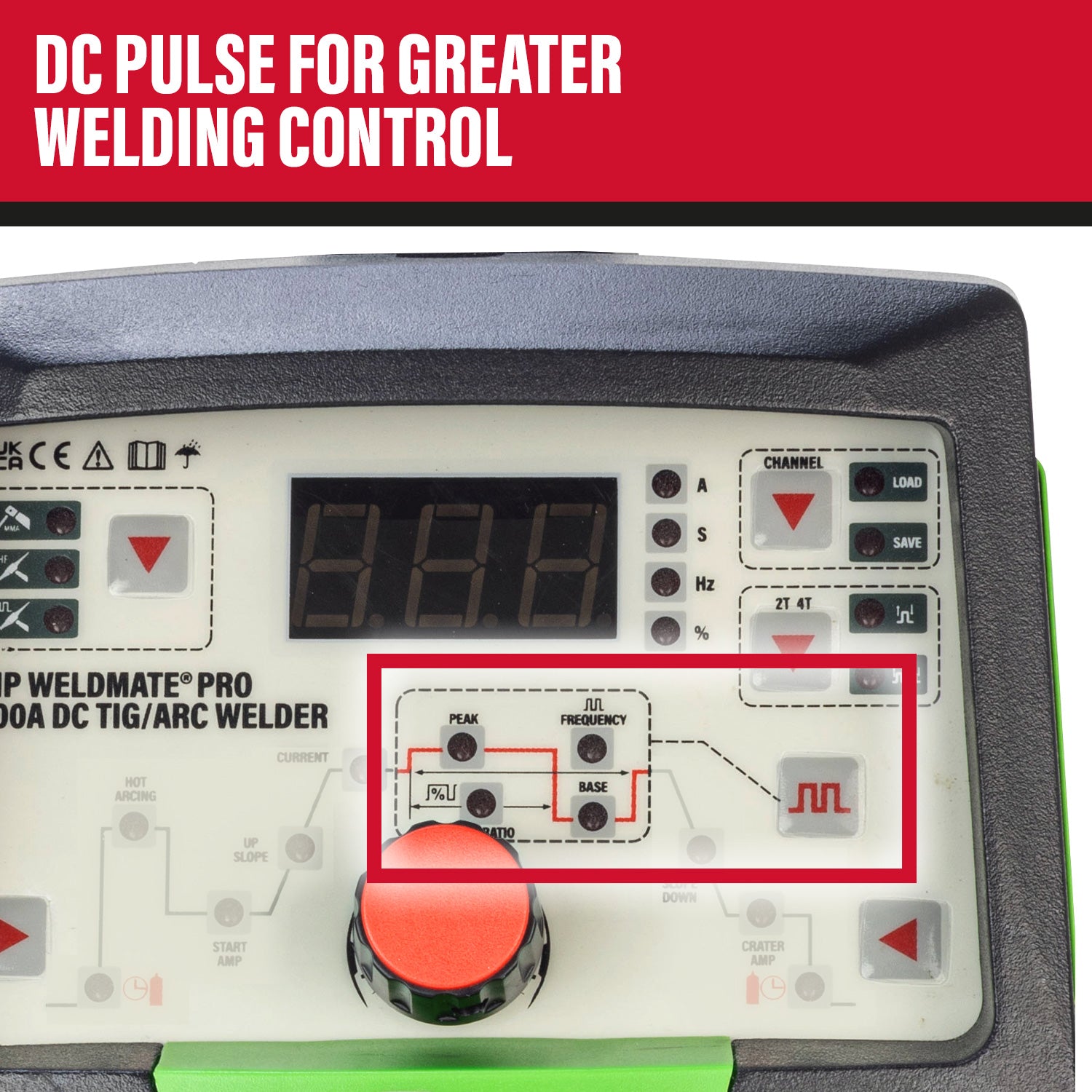

Features an adjustable 8-stage TIG welding sequence with Pulse TIG parameters

Pre/post gas setting to prevent oxidation for a clean and higher quality weld

Infinitely variable dial with LED display offer smoother output adjustment

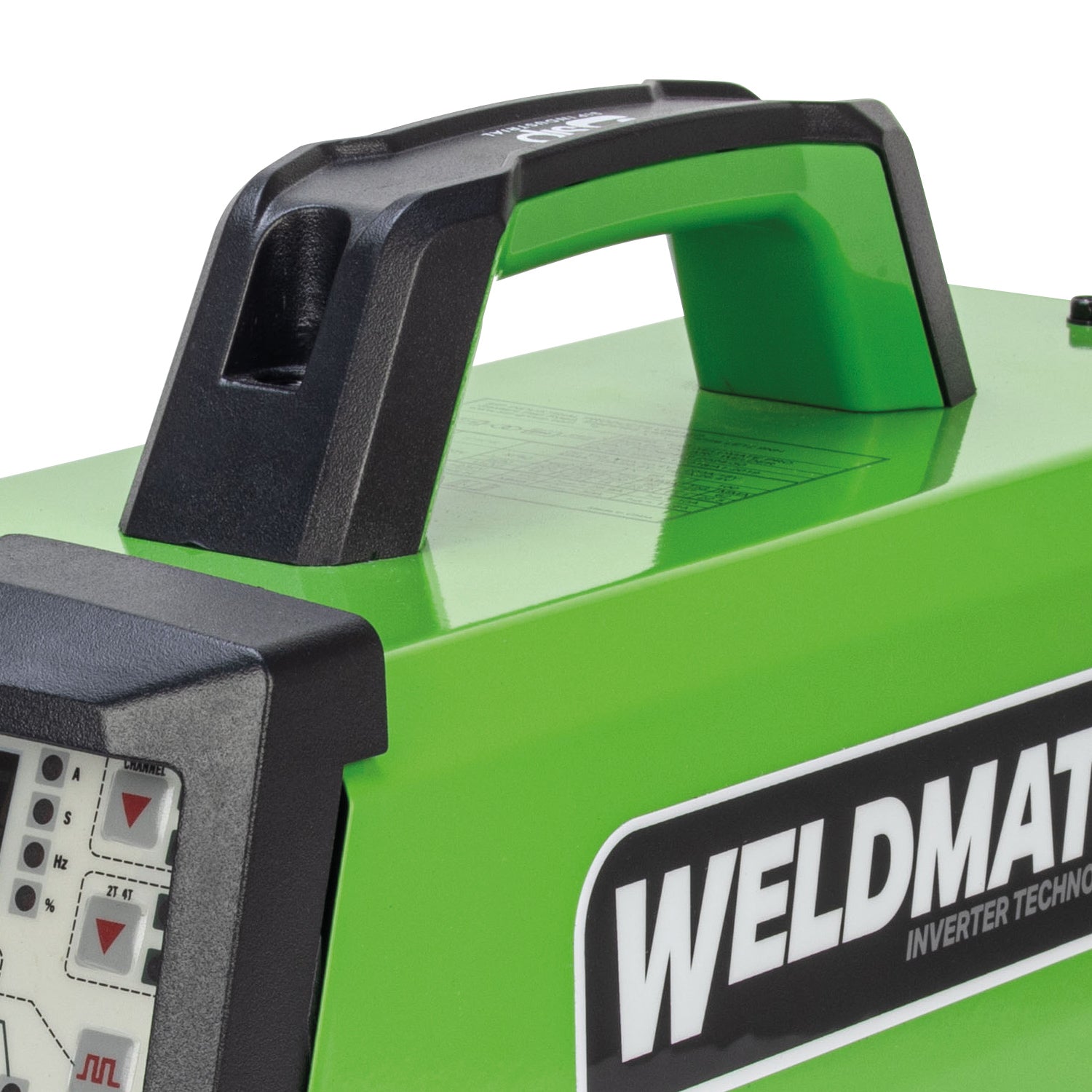

Compact and lightweight design for easy work area movement

SIP 05695 WELDMATE® PRO 200A DC TIG/ARC Inverter Welder

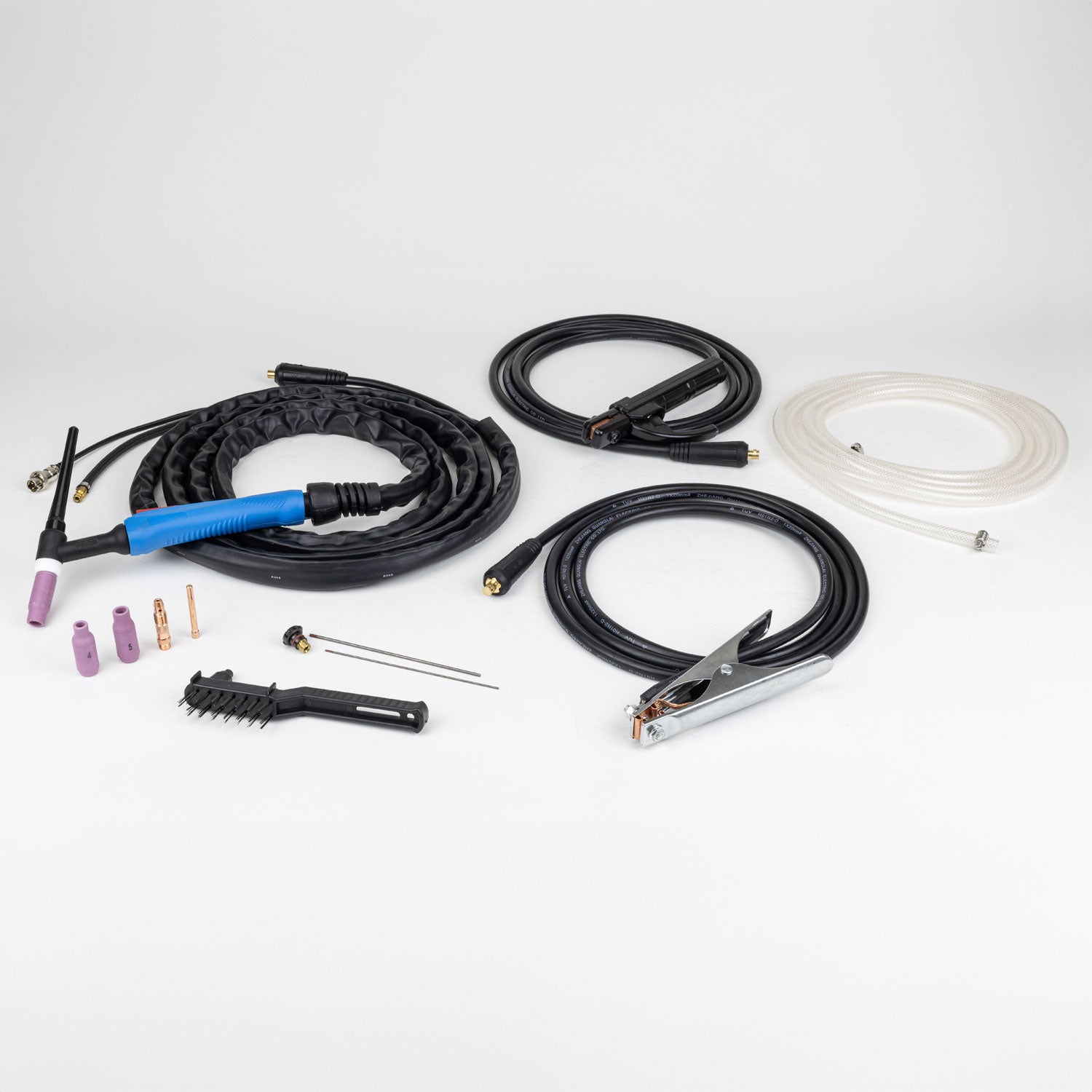

1x SIP WELDMATE® PRO DC 200A TIG/ARC Inverter Welder (230v/16A), 1x 3mtr TIG torch with consumables (2x tungsten electrodes, collets, collet bodies, ceramic nozzles and back caps), 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x welding hammer/brush.
